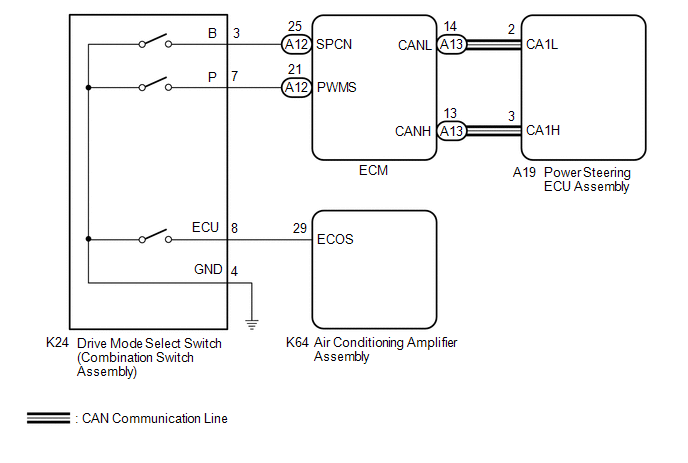

Drive Mode Select Switch Circuit [10/2015 - ]: Wiring Diagram

GTY659930

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
