Components [08/2015 - 08/2019]

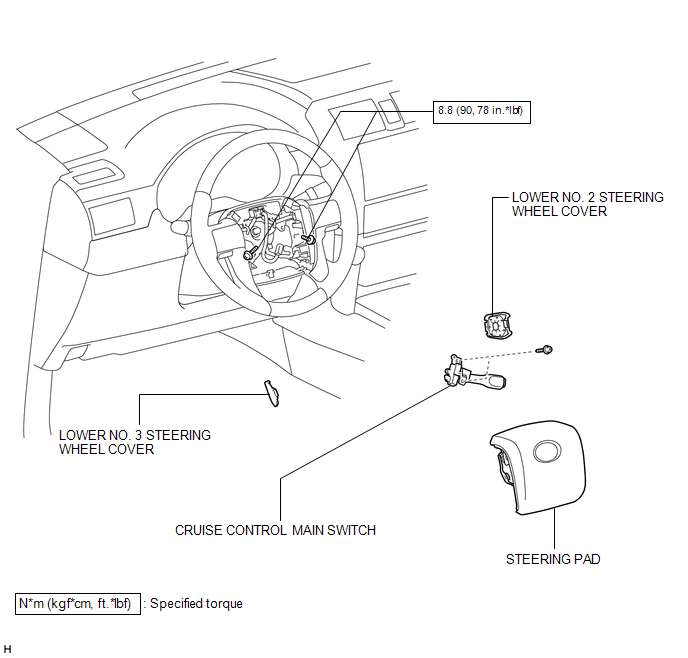

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications
GTY620985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
