Components [08/2015 - 08/2019]

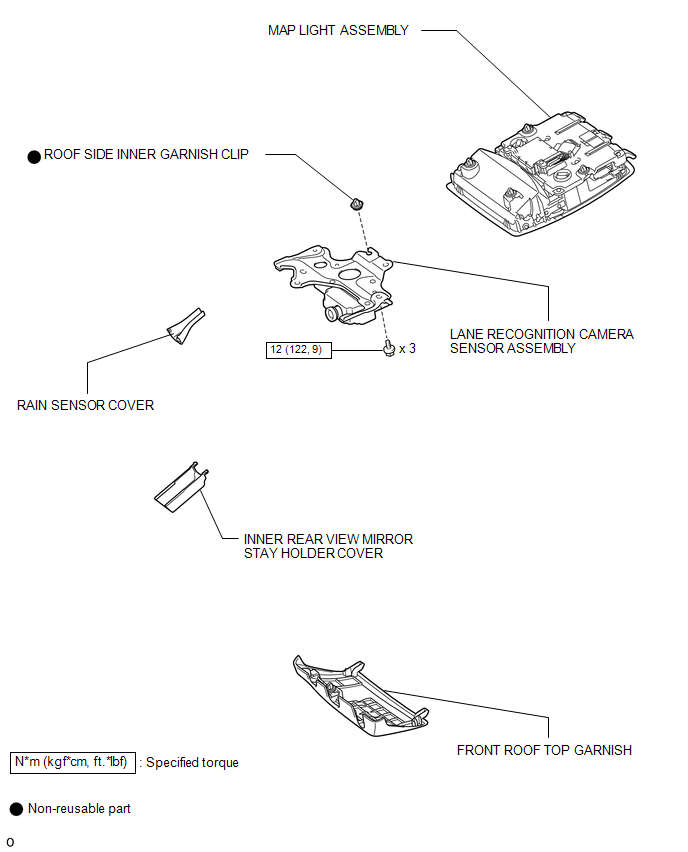

Fig 1: Lane Departure Warning Camera Replacement Components With Torque Specification
GTY653896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
