System Diagram [08/2019 - ]

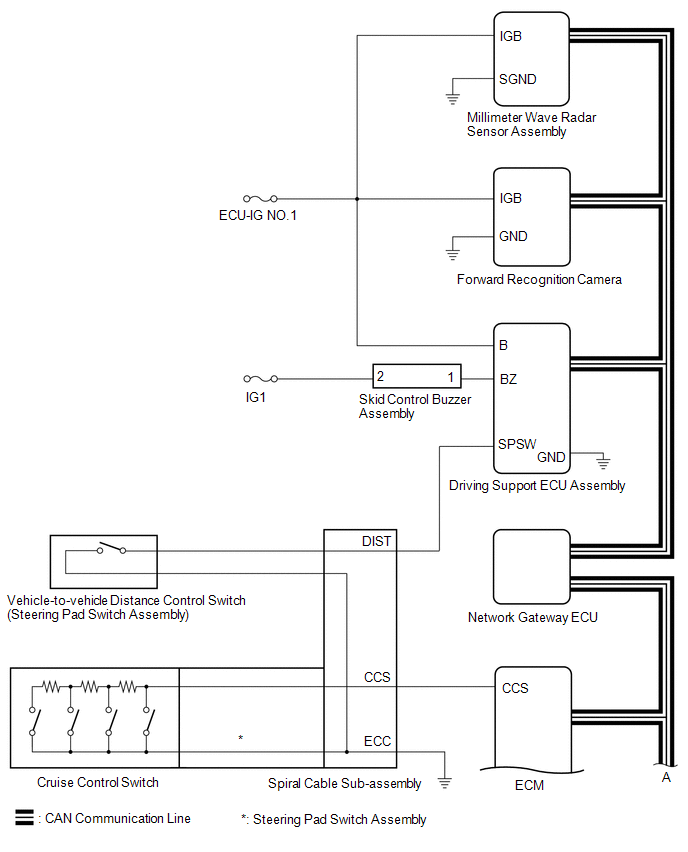

Fig 1: Dynamic Radar Cruise Control System Wiring Diagram (1 Of 2)
GTY957544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

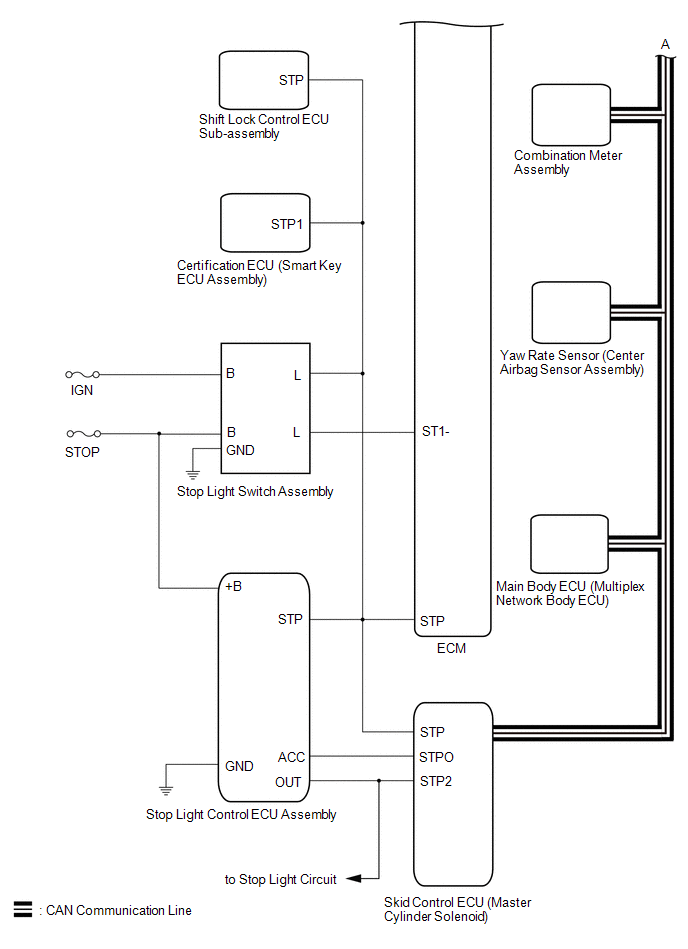

Fig 2: Dynamic Radar Cruise Control System Wiring Diagram (2 Of 2)
GTY957134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
