Installation [08/2015 - ]: Procedure

  1. INSTALL ID CODE BOX (IMMOBILISER CODE ECU)

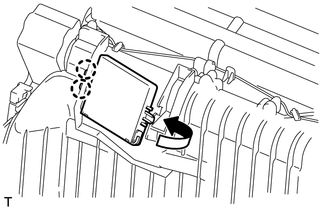

    1. Attach the 2 claws and move the ID code box (immobiliser code ECU) in the direction of the arrow.
      GTY279251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

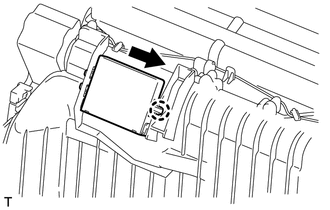

    2. Move the ID code box in (immobiliser code ECU) the direction of the arrow to attach the claw and install the ID code box (immobiliser code ECU).
      GTY279253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONING UNIT ASSEMBLY
    1. Install the instrument panel reinforcement assembly with air conditioning unit assembly (Refer to INSTALLATION [08/2015 - 08/2020] , or refer to INSTALLATION [08/2020 - 08/2021] , or refer to INSTALLATION [08/2021 - ] ).
  3. REGISTER ECU CODE
    1. Register the ECU code (Refer to REGISTRATION [08/2015 - 08/2019] , or refer to REGISTRATION [08/2019 - 08/2021] , or refer to REGISTRATION [08/2021 - 08/2022] , or refer to REGISTRATION [08/2022 - ] ).
