Components [08/2021 - ]

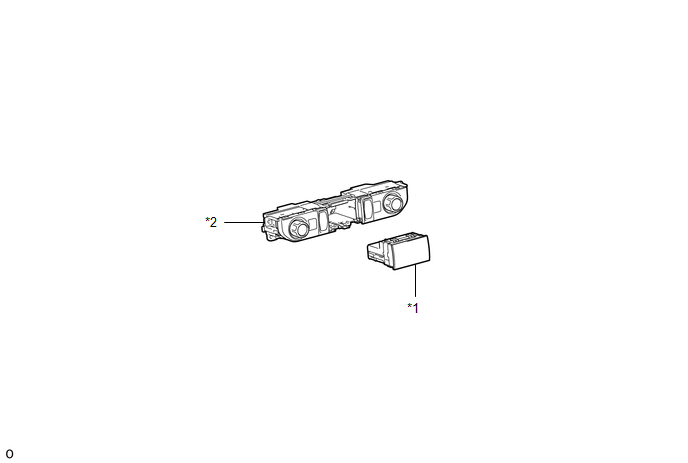

Fig 1: Security Indicator Light Assembly Replacement Components [08/2021 - ]
GTY1083984Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLOCK ASSEMBLY (SECURITY INDICATOR LIGHT ASSEMBLY) *2 INTEGRATION CONTROL AND PANEL ASSEMBLY
