Inspection [08/2021 - ]: Procedure
- INSPECT CLOCK ASSEMBLY (SECURITY INDICATOR LIGHT ASSEMBLY)
- Apply battery voltage to the clock assembly (security indicator light assembly) and check the security indicator illumination conditions.

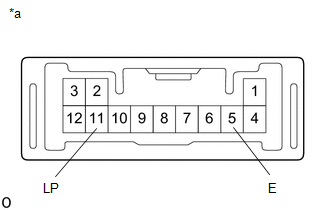

*a Component without harness connected
(Clock Assembly (Security Indicator Light Assembly))OK
Tester Connection Specified Condition 11 (LP) - Battery positive (+)
5 (E) - Battery negative (-)Security indicator illuminates If the result is not as specified, replace the clock assembly (security indicator light assembly).
- Apply battery voltage to the clock assembly (security indicator light assembly) and check the security indicator illumination conditions.
