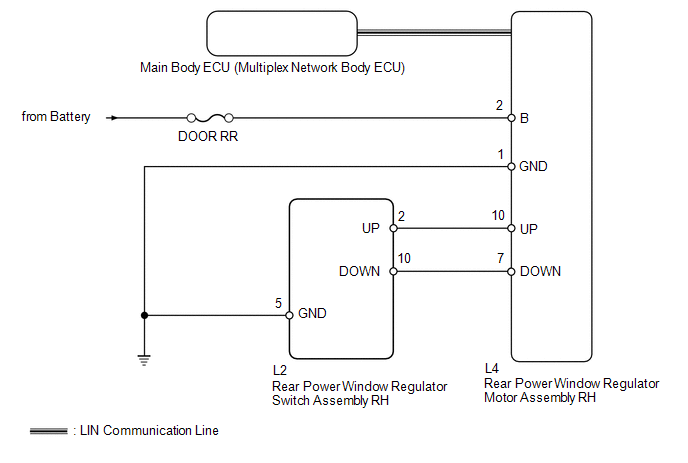

Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2015 - 08/2019]: Wiring Diagram

GTY681909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
