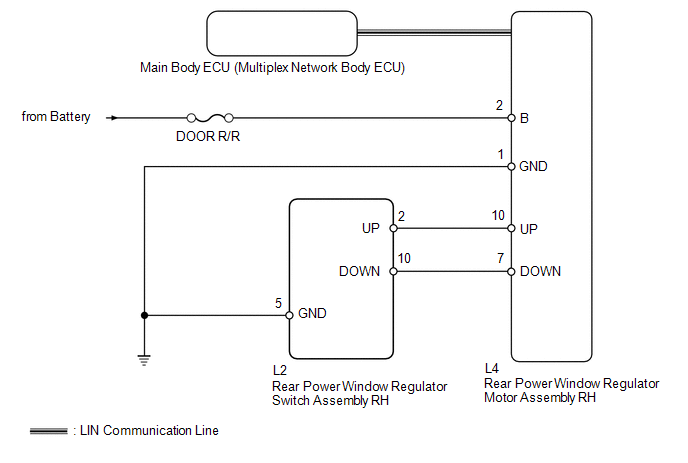

Rear Power Window RH does not Operate with Rear Power Window Switch RH [08/2019 - ]: Wiring Diagram

GTY949250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
