System Diagram [08/2015 - 08/2019]

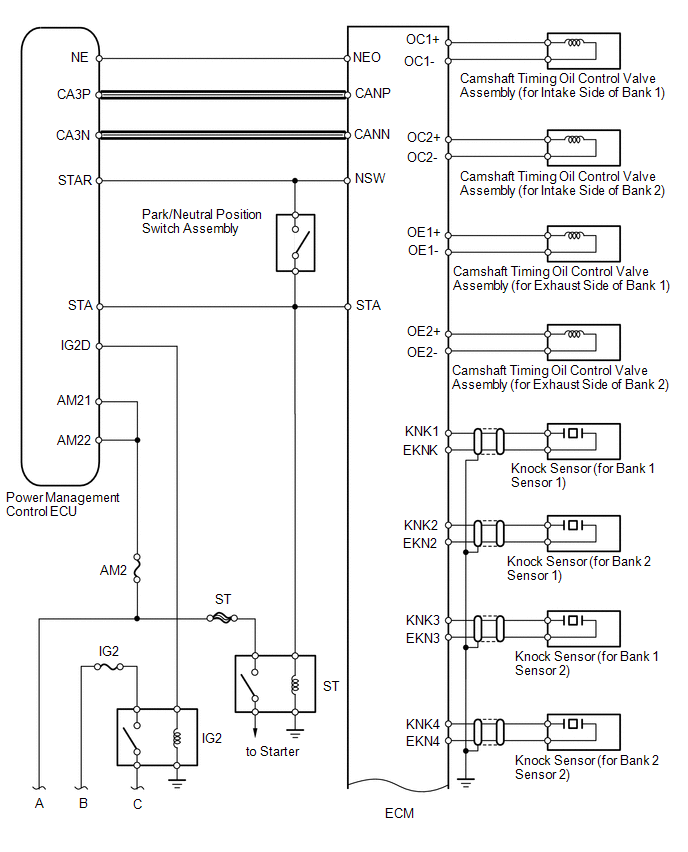

Fig 1: SFI System Diagram (1 Of 6)

GTY654890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

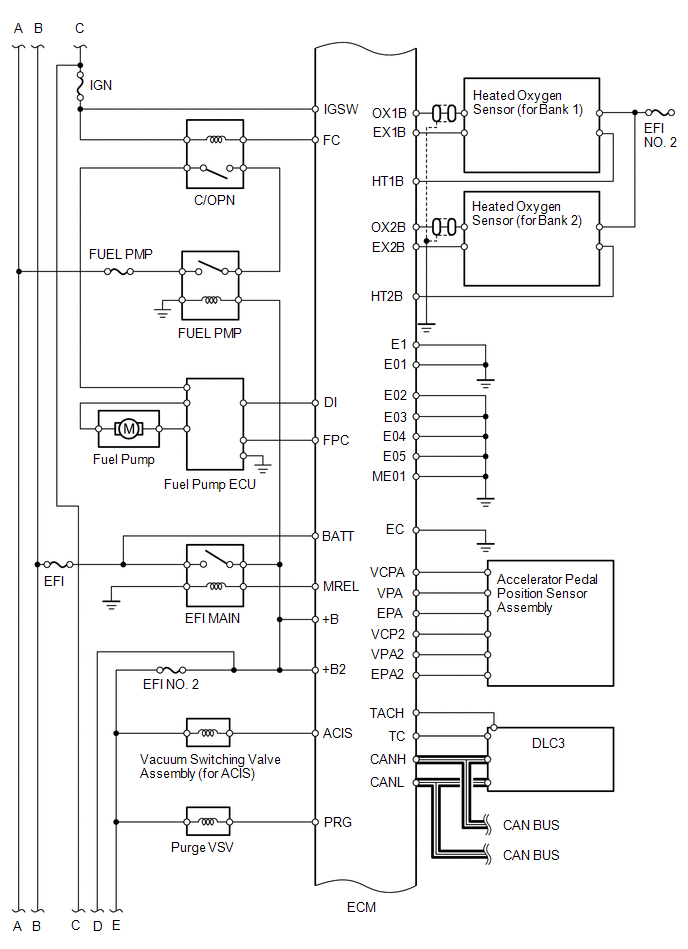

Fig 2: SFI System Diagram (2 Of 6)

GTY637460

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

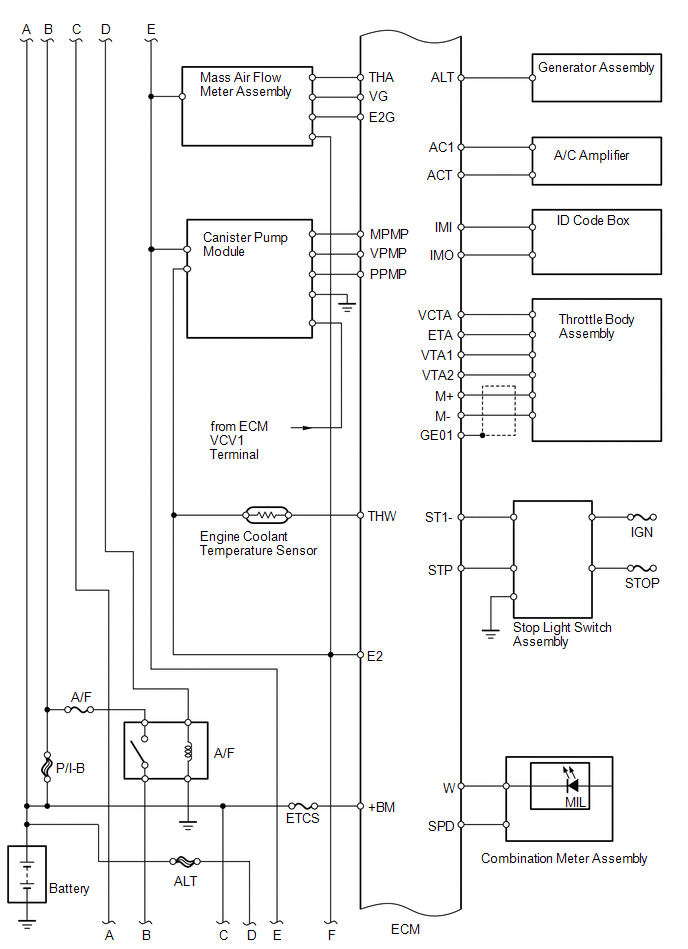

Fig 3: SFI System Diagram (3 Of 6)

GTY460904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

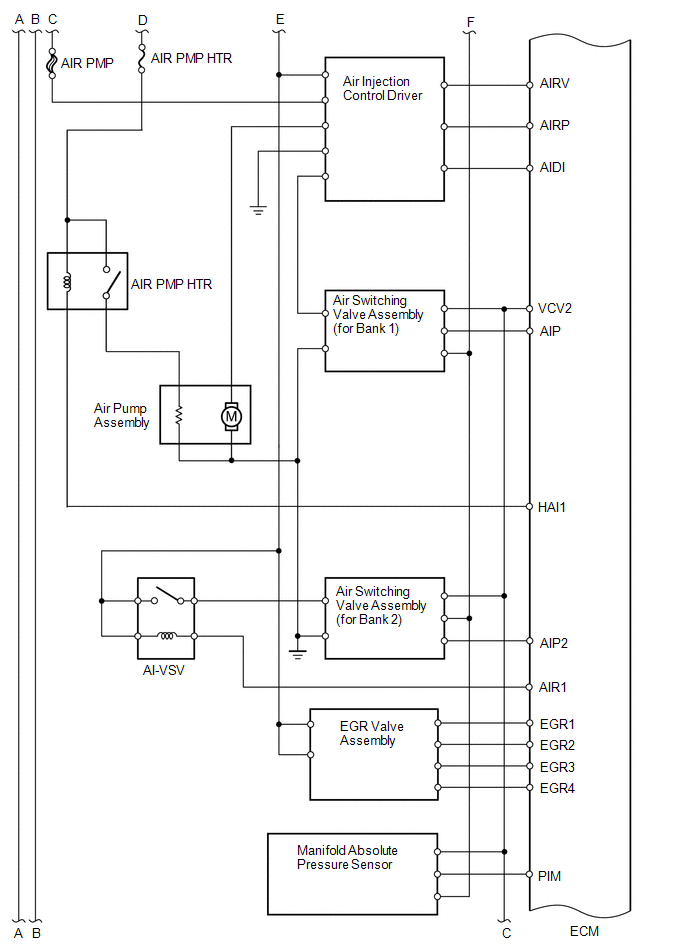

Fig 4: SFI System Diagram (4 Of 6)

GTY623005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: SFI System Wiring Diagram (5 Of 6)

GTY272854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

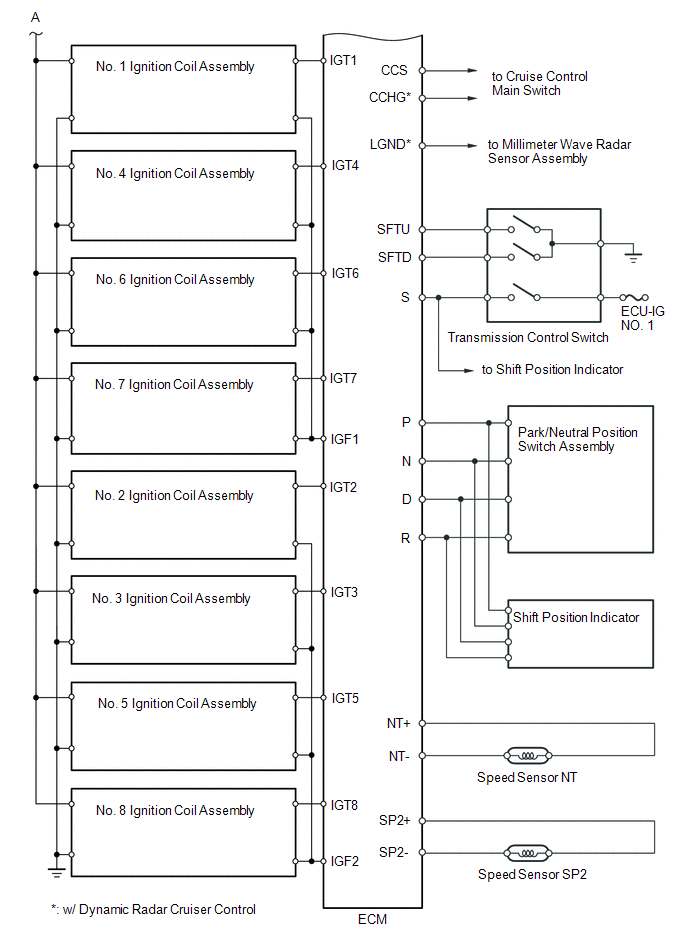

Fig 6: SFI System Wiring Diagram (6 Of 6)

GTY684714

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
