Components [04/2013 - 10/2016]

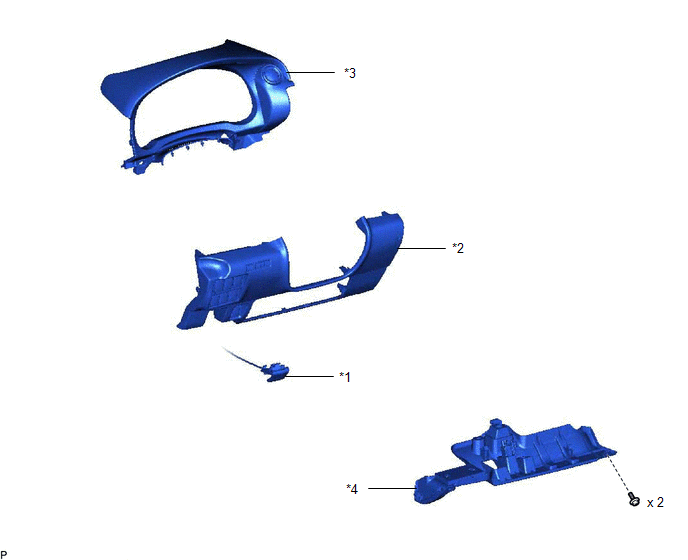

Fig 1: Multi-Display Replacement Components [04/2013 - 10/2016] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HOOD LOCK CONTROL LEVER SUB-ASSEMBLY	*2	LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
*3	METER HOOD SUB-ASSEMBLY	*4	NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

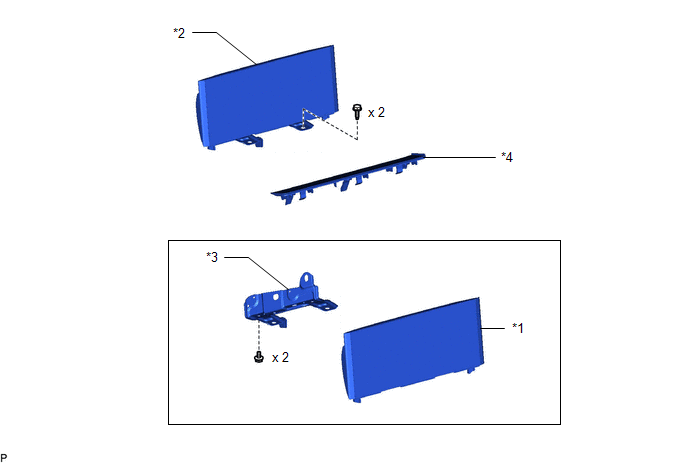

Fig 2: Multi-Display Replacement Components [04/2013 - 10/2016] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	MULTI-DISPLAY ASSEMBLY	*2	MULTI-DISPLAY ASSEMBLY WITH BRACKET
*3	NO. 1 MULTI-DISPLAY BRACKET	*4	NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Fig 3: =Multi-Display Replacement Components [04/2013 - 10/2016] (3 Of 3)
