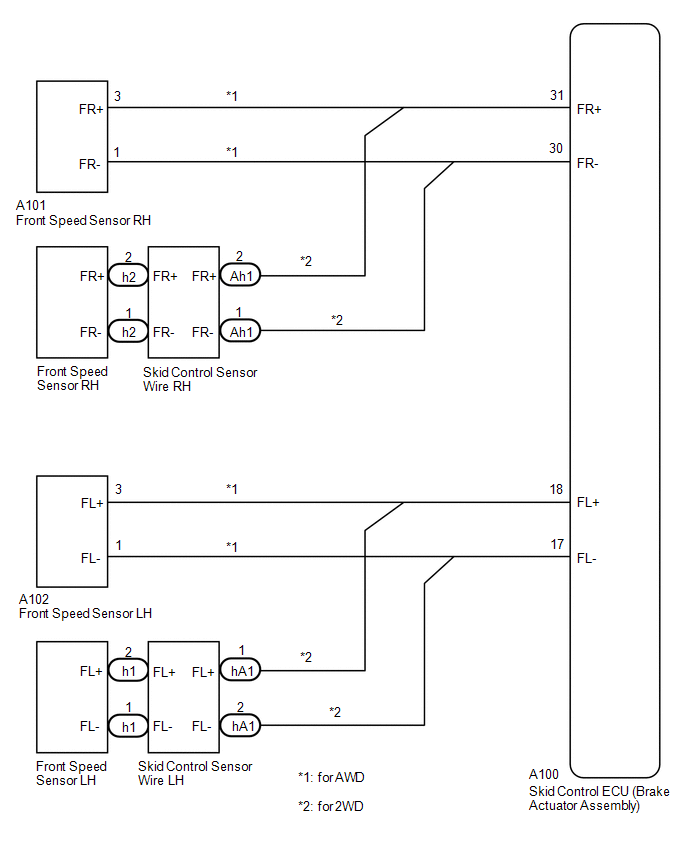

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [10/2016 - 10/2017]: Wiring Diagram

GTY672896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
