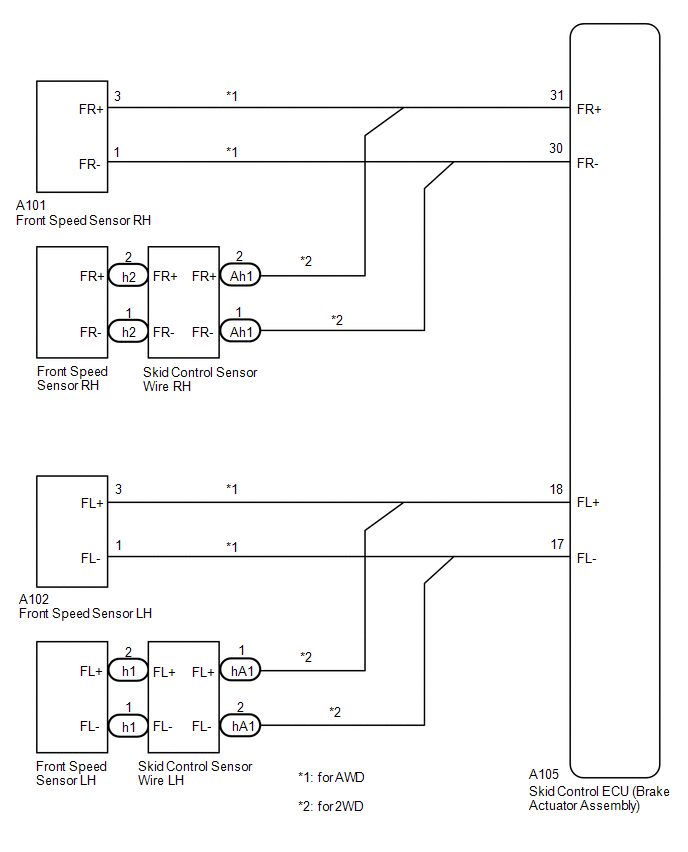

DTC C1413: Front Speed Sensor RH Circuit Output; DTC C1414: Front Speed Sensor LH Circuit Output [10/2017 - 09/2020]: Wiring Diagram

GTY777197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
