Pre-Collision System - Diagnostic Codes (2 Of 2) & Circuit Tests
>>
Pre-Collision System
>>
DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [04/2013 - 10/2016]
>>

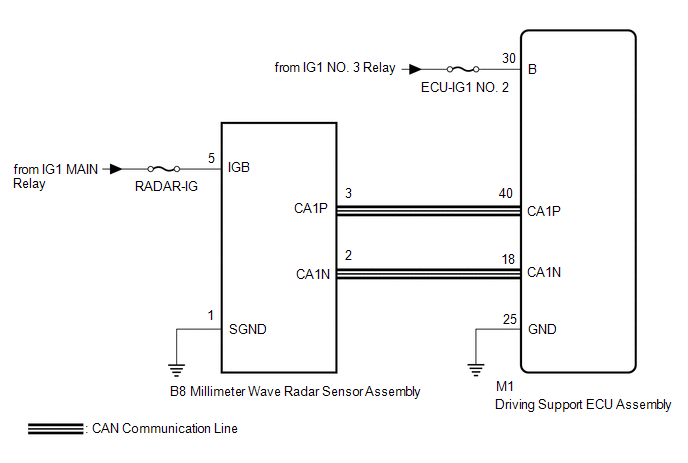

Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [04/2013 - 10/2016]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
