Parts Location [10/2017 - 09/2020]: Illustration

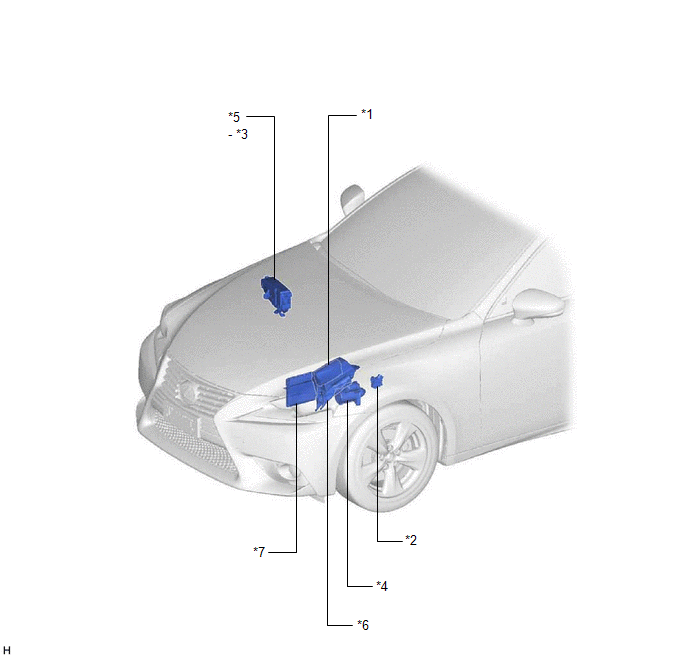

Fig 1: Smart Access System With Push-Button Start (For Start Function) Components Location (1 Of 3) [10/2017 - 09/2020]
| *1 | SEMICONDUCTOR PWR INTEGRATION ECU | *2 | PARK / NEUTRAL POSITION SWITCH ASSEMBLY |
| *3 | ST NO. 1 RELAY | *4 | STARTER ASSEMBLY |
| *5 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ST NO. 1FUSE |
*6 | NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY - IG2 RELAY - IG1 MAIN RELAY - IG2 FUSE - IG2-MAIN FUSE - STOP FUSE |
| *7 | ECM | - | - |
Fig 1: Smart Access System With Push-Button Start (For Start Function) Components Location (2 Of 3) [10/2017 - 09/2020]
| *1 | LUGGAGE ELECTRICAL KEY SWITCH | *2 | DOOR CONTROL RECEIVER |
| *3 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for FRONT PASSENGER DOOR) | *4 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY (for DRIVER DOOR) |
| *5 | NO. 2 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (FRONT FLOOR) | *6 | INDOOR ELECTRICAL KEY ANTENNA (REAR FLOOR) |
| *7 | NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (INSIDE LUGGAGE) | *8 | ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT) |

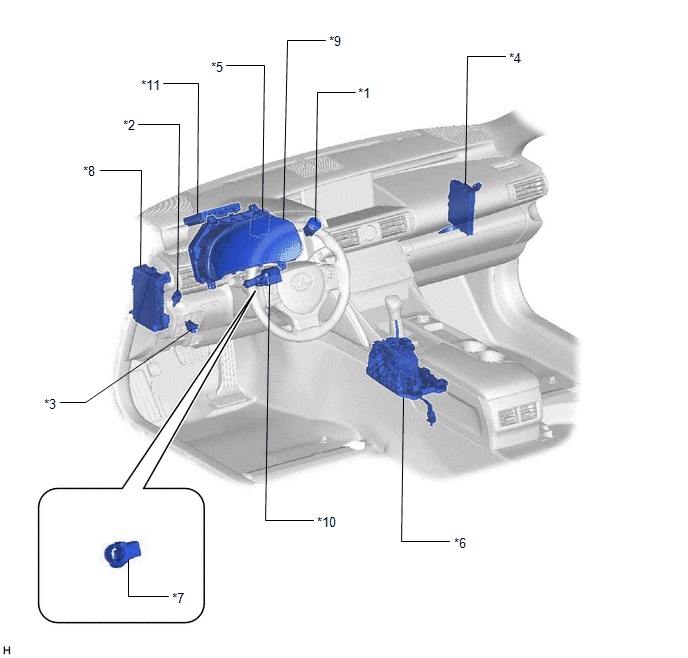

Fig 1: Smart Access System With Push-Button Start (For Start Function) Components Location (3 Of 3) [10/2017 - 09/2020]
| *1 | ENGINE SWITCH | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | DLC3 | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | ID CODE BOX (IMMOBILISER CODE ECU) | *6 | TRANSMISSION FLOOR SHIFT ASSEMBLY |
| *7 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Manual Tilt and Manual Telescopic Steering Column) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC RELAY - IG1 NO. 1 RELAY - IG1 NO. 2 RELAY - IG1 NO. 3 RELAY - AM2 FUSE - ECU-ACC FUSE - S/HTR F/R FUSE - IG1 NO. 1 FUSE - IG1 NO. 3 FUSE |
| *9 | COMBINATION METER ASSEMBLY | *10 | STEERING LOCK ECU (STEERING LOCK ACTUATOR ASSEMBLY) (for Power Tilt and Power Telescopic Steering Column) |
| *11 | DCM (TELEMATICS TRANSCEIVER) (for Lexus Enform Remote Compatible Type) | - | - |
