Installation [10/2016 - 09/2020]: Procedure

  1. INSTALL FORWARD RECOGNITION CAMERA

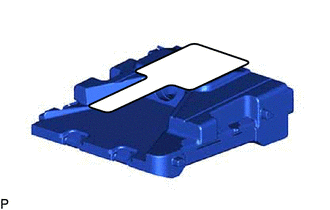

    1. When using a new forward recognition camera:
      GTY618577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the protective film.
        NOTE:

        Do not touch the camera lens after removing the protective film.

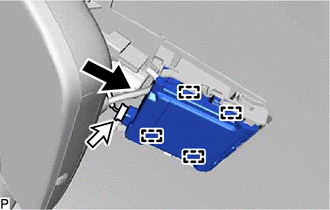

    2. Engage the 4 guides as shown in the illustration.
      GTY673823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not touch the camera lens.

    3. Connect the connector to install the forward recognition camera.
  2. INSTALL FORWARD RECOGNITION LATCH

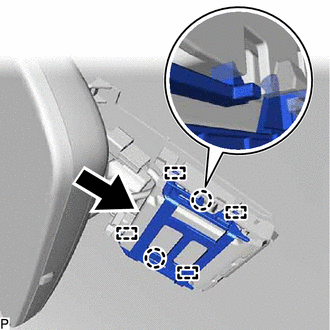

    1. Engage the 4 guides and 2 claws as shown in the illustration to install the forward recognition latch.
      GTY618575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 FORWARD RECOGNITION COVER

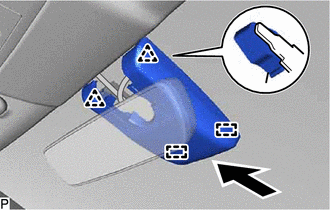

    1. Engage the 2 clips and 2 guides as shown in the illustration to install the No. 1 forward recognition cover.
      GTY618560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 FORWARD RECOGNITION COVER

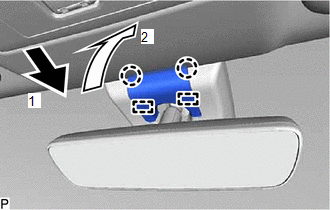

    1. Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the No. 2 forward recognition cover.
      GTY618858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. ADJUST FORWARD RECOGNITION CAMERA
    1. If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.

      Refer to ADJUSTMENT (SEQUENTIAL RECOGNITION) [10/2016 - 09/2020]
