Adjustment [04/2013 - 10/2016]: Procedure

  1. ADJUST LANE DEPARTURE WARNING CAMERA
    NOTE:

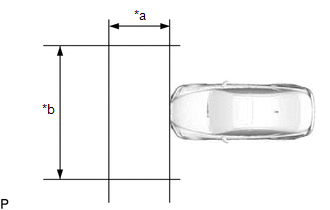

    GTY458827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a 1.5 m or more
    *b 3 m or more
    • Make sure there are no black and white patterned objects in front of the vehicle.
    • Be sure to perform the measurement on a level surface that is free of obstacles and extends 1.5 m (4.92 ft.) or more in front of the vehicle.
    • Make sure that there is no wind when performing the measurement.
    • Check that there are no reflective materials in the surroundings or on the ground within a 3 m (9.84 ft.) x 3 m (9.84 ft.) area in front of the vehicle.
    • Perform the inspection in a bright area.
    1. Prepare for beam axis learning.
      1. Move the vehicle to a level surface.
      2. Make sure the engine oil in the vehicle is at the specified level.
      3. Make sure the engine coolant in the vehicle is at the specified level.
      4. Make sure the fuel tank is full.
      5. Make sure the spare tire is in the vehicle.
      6. Make sure the standard tools are in the vehicle.
      7. Make sure nobody is in the vehicle.
      8. Make sure no extra loads are in the vehicle.
      9. Adjust the tire pressures to the specified pressure.
      10. Clean the windshield.
    2. Create a target sheet.
      1. Print or copy the illustration. Check that the dimensions are within +/- 5 mm (0.197 in.) of the ones in the table below.
        GTY442185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 16 mm (0.630 in.)
        *b 80 mm (3.15 in.)
        *c 160 mm (6.30 in.)
        NOTE:
        • Make sure that the black areas of the target sheet are not glossy.
        • Make sure that the borders of the black and white areas on the target sheet are straight, and are not warped or blurry.

        If the dimensions of the print or copy are not as specified, adjust settings and reprint or recopy so that the dimensions are as specified.

        GTY220241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the target sheet.
      GTY444106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Target Sheet
      *b Cardboard
      1. Place the prepared target sheet on a piece of cardboard of the same size with the black area on the top right, as shown in the illustration. Then use double-sided tape to secure the target sheet in place.
        NOTE:

        Do not attach reflective tape, such as transparent adhesive tape, to the target face, as this may affect target recognition.

      2. Hang a weight with a pointed tip from the center of the target sheet. Then, with double-sided tape, attach the target sheet to the reflector so that the weight aligns with the mark-off line of SST (laser radar adjusting reflector).
        • SST: 09870-60000
          1. 09870-60010
          2. 09870-60020
        GTY436397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Pointed Tip Weight
        *b Mark-off Line
        NOTE:
        • Perform this procedure as accurately as possible.
        • Attach the target sheet so that it is horizontal with the ground.
      3. Move the reflector up and down to position the center of the target at the height shown in the illustration and secure it in place.
        GTY450793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a 1350 mm (4.43 ft.)
        • SST: 09870-60000
          1. 09870-60010
          2. 09870-60020
        NOTE:

        Perform this procedure as accurately as possible.

    4. Measure the target placement point.
      NOTE:
      • Do not place black and white patterned objects near the target.
      • Face the vehicle toward a wall with no patterns or make sure the background behind the target has no patterns.
      • Perform this procedure as accurately as possible.
      • Do not place reflective materials in the area behind the target.
      • Make sure the distance between the target and wall is within 3 m (9.84 ft.).
      • Make sure the shadow of the target is not on the wall as this may cause a recognition error.

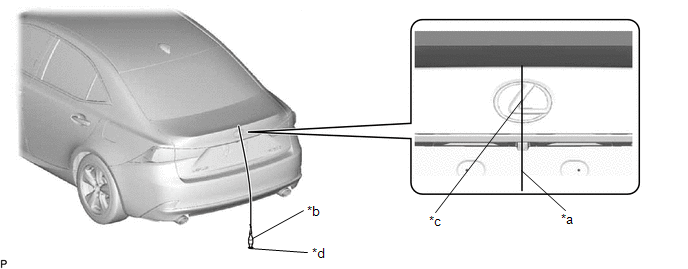

      1. Hang the string (with weight) from the center of the vehicle rear emblem. Mark the vehicle rear center point on the ground.
        GTY461528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center point *d Point A
      2. Repeat for the front of the vehicle.

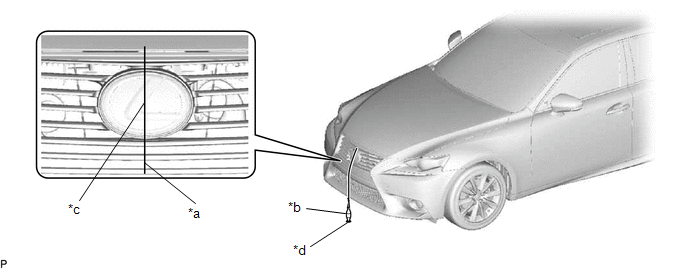

        GTY463439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a String *b Weight
        *c Center point *d Point B
      3. Secure one end of a string to point A, stretch the other end so that it passes point B in a straight line, and secure the string at a position 2000 mm (6.56 ft.) or more from the front end of the vehicle.

        HINT:

        • Make sure the string is taut (using tape, etc.) when it is secured.
        • Lightly flick the string with your fingers several times to confirm that the string is aligned with point B.
      4. Mark point C at a position 523 mm (1.72 ft.) from point B.

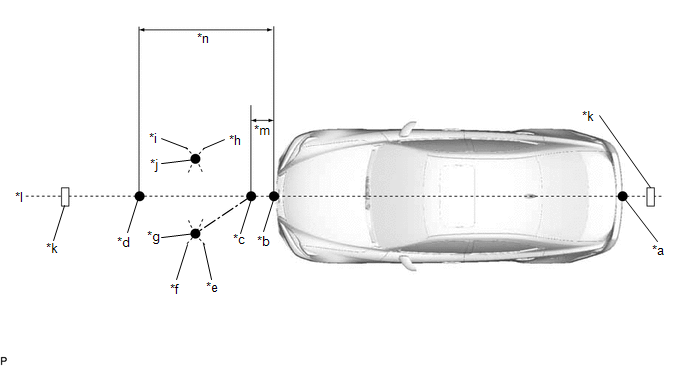

        GTY470303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Point A *b Point B
        *c Point C *d Point D
        *e Line E *f Line F
        *g Point G (Placement Point 2) *h Line H
        *i Line I *j Point J (Placement Point 3)
        *k Tape *l String
        *m 523 mm (1.72 ft.) *n 1773 mm (5.82 ft.)
      5. Mark point D at a position 1773 mm (5.82 ft.) from point B.
      6. Using the string, mark line E at a position 1000 mm (3.28 ft.) from point C.
      7. Using the string, mark line H at a position 1000 mm (3.28 ft.) from point C.
      8. Using the string, mark line F at a position 1000 mm (3.28 ft.) from point D.
      9. Using the string, mark line I at a position 1000 mm (3.28 ft.) from point D.
      10. Mark point G at the point where line E and line F intersect (placement point 2).
      11. Mark point J at the point where line H and line I intersect (placement point 3).
      12. Secure a string that connects point G and point J to the ground (target placement line).

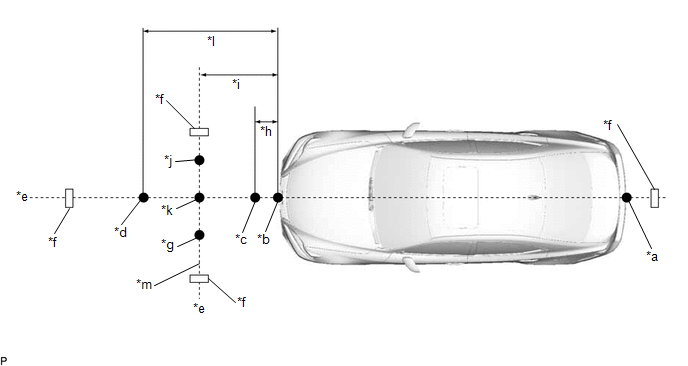

        GTY467426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Point A *b Point B
        *c Point C *d Point D
        *e String *f Tape
        *g Point G (Placement Point 2) *h 523 mm (1.72 ft.)
        *i 1148 mm (3.77 ft.) *j Point J (Placement Point 3)
        *k Point K (Placement Point 1) *l 1773 mm (5.82 ft.)
        *m Target Placement Line - -
      13. Mark point K at the intersection between the string connecting points C and D and the string connecting points G and J (placement point 1).
      14. Confirm the distance measurements for points K, G, and J (placement points 1, 2, and 3) again.

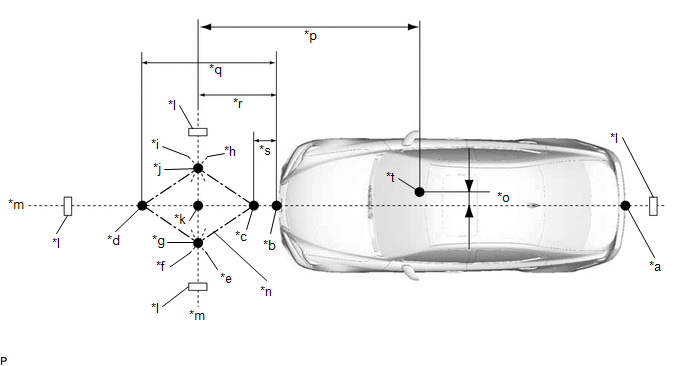

        GTY458590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Point A *b Point B
        *c Point C *d Point D
        *e Line E *f Line F
        *g Point G (Placement Point 2) *h Line H
        *i Line I *j Point J (Placement Point 3)
        *k Point K (Placement Point 1) *l Tape
        *m String *n 1000 mm (3.28 ft.) (String)
        *o 76 mm (2.99 in.) *p 3000 mm (9.84 ft.)
        *q 1773 mm (5.82 ft.) *r 1148 mm (3.77 ft.)
        *s 523 mm (1.72 ft.) *t Lane Departure Warning Camera Position
    5. Memorize camera/target position.
      NOTE:
      • Close all doors.
      • Perform the procedure with no one in the vehicle.
      • During the procedure, do not lean on the vehicle.
      • Do not turn on the headlights.
      1. When using the Techstream:
        1. Connect the Techstream to the DLC3.
        2. Turn the engine switch on (IG).*1
        3. Turn the Techstream on.
        4. Select "Connect to Vehicle".
        5. Select each item on the display screen and proceed to the next screen.
        6. Under "System Selection Menu", select "Lane Departure Alert".
        7. Select "Utility" from the display screen.
        8. Select "Recognition Camera/Target Position Memory" and proceed to the next screen.

          HINT:

          A buzzer will sound for 1 second.

        9. Follow the Techstream display, and continue with the adjustment.

        Chassis > Lane Departure Alert > Utility

        Tester Display
        Recognition Camera/Target Position Memory
      2. Input the height of the camera "1258 mm (49.5 in.)" and the horizontal position of the camera "76 mm (2.99 in.)" into the input screen. Then press the "Next" button on the display screen.
      3. Input "3000 mm (118 in.)" for the distance from the camera to the target and "1350 mm (53.1 in.)" for the height of the target into the input screen. Then press the "Next" button on the display screen.
      4. Input "1814 mm (71.4 in.)" for the width of the vehicle and "1024 mm (40.3 in.)" for the distance between the recognition camera and the front tire into the input screen. Then press the "Next" button on the display screen.
      5. Press the "Exit" button to finish the camera/target position memory mode.
        NOTE:

        If "Error Camera/target position memory" is displayed on the screen, press the "Try Again" button, and repeat from procedure *1 again.

    6. Perform beam axis learning.
      1. Select "Connect to Vehicle".
      2. Select each item on the display screen and proceed to the next screen.
      3. Under "System Selection Menu", select "Lane Departure Alert".*1
      4. Select "Utility" from the display screen.
      5. Select "Recognition Camera Axis Adjust" from the display screen.
      6. Follow the Techstream display and continue with the adjustment.

        Chassis > Lane Departure Alert > Utility

        Tester Display
        Recognition Camera Axis Adjust
      7. Align the target sheet with the target placement line and align the mark-off line with point K (placement point 1).
        GTY450932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Mark-off Line
        *b Point K (Placement Point 1)
        *c Target Placement Line
      8. Check that the screen displays beam axis learning for target 1, then press the "Next" button on the display screen.
      9. Align the target sheet with the target placement line, and align the mark-off line with point G (placement point 2).
        GTY450932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Mark-off Line
        *b Point G (Placement Point 2)
        *c Target Placement Line
      10. Check that the screen displays beam axis learning for target 2, then press the "Next" button on the display screen.
        NOTE:

        Within 3 minutes after the screen displays the beam axis learning for target 2, move the target and press the "Next" button on the display screen.

      11. Align the target sheet with the target placement line and align the mark-off line with point J (placement point 3).
        GTY450932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *a Mark-off Line
        *b Point J (Placement Point 3)
        *c Target Placement Line
      12. Check that the screen displays beam axis learning for target 3 then press the "Next" button on the display screen.
        NOTE:

        Within 3 minutes after the screen displays the beam axis learning for target 3, move the target and press the "Next" button on the display screen.

      13. Press the "Exit" button to finish beam axis learning mode.
        NOTE:

        If "Error camera axis adjust" is displayed on the screen, press the "Exit" button. Then after checking the following, turn the engine switch on (IG) and off, and repeat from procedure *1 again.

        • Height of the target.
        • Distance from the lane departure warning camera to the target.
        • Orientation of the target (black area positioned on top right).
        • If surrounding area is bright enough.
        • If black and white patterned objects are placed near the target.
