Removal [04/2013 - 10/2016]: Procedure

  1. REMOVE LANE DEPARTURE WARNING CAMERA COVER
    1. Disengage the 4 guides to remove the lane departure warning camera cover as shown in the illustration.

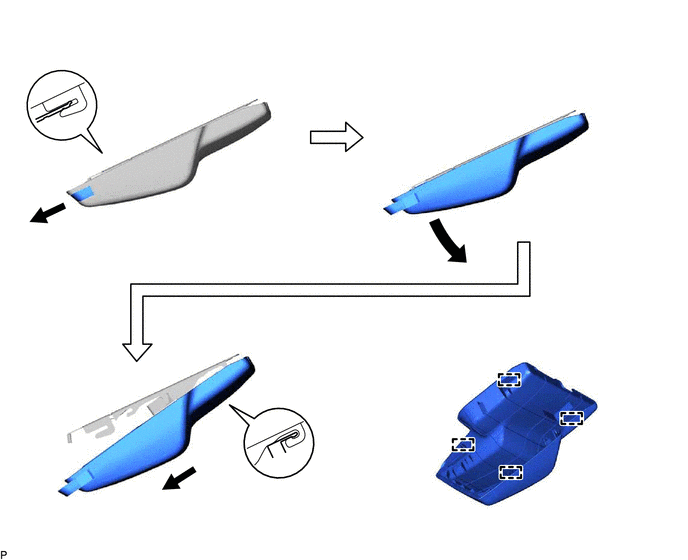

      GTY461321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LANE DEPARTURE WARNING CAMERA
    1. Disconnect the connector.

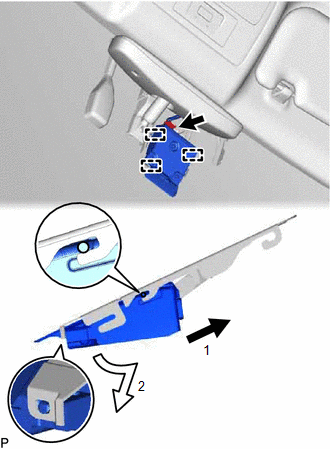

      GTY463454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 guides and remove the lane departure warning camera as shown in the illustration.
      NOTE:
      • Do not pull the harness forcibly when disconnecting the connector.
      • If the lane departure warning camera bracket is deformed or damaged, replace it together with the windshield glass.
      • If the lane departure warning camera is dropped, replace it with a new one.
