Components [04/2013 - 10/2016]

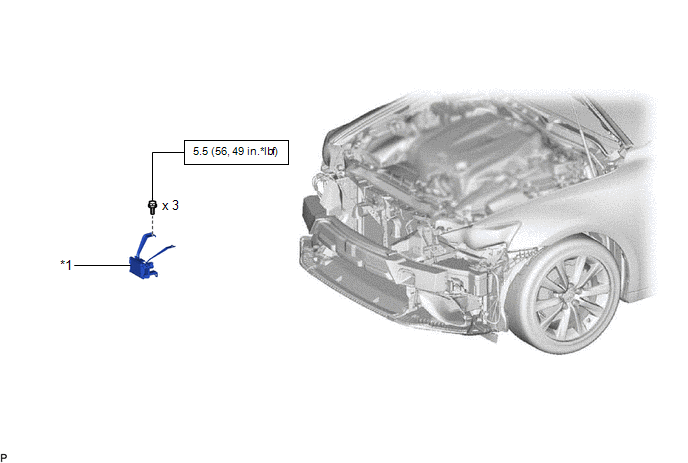

Fig 1: Millimeter Wave Radar Sensor Replacement Components With Torque Specifications [04/2013 - 10/2016]
GTY461014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MILLIMETER WAVE RADAR SENSOR ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
