Components [04/2013 - 09/2020]

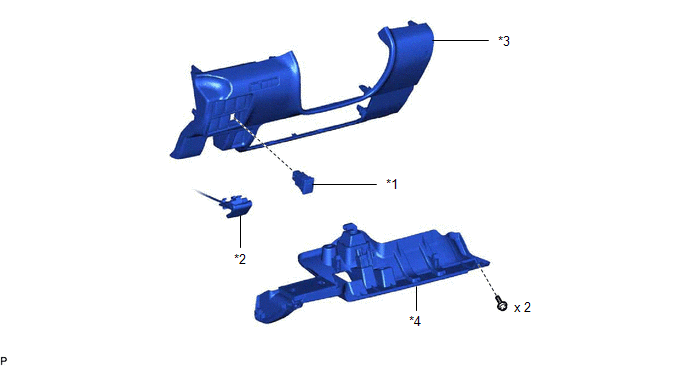

Fig 1: Blind Spot Monitor Main Switch Replacement Components [04/2013 - 09/2020]
GTY466438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BLIND SPOT MONITOR MAIN SWITCH ASSEMBLY (WARNING CANCELING SWITCH ASSEMBLY) *2 HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
*3 LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY *4 NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
