Components [04/2013 - 10/2016]

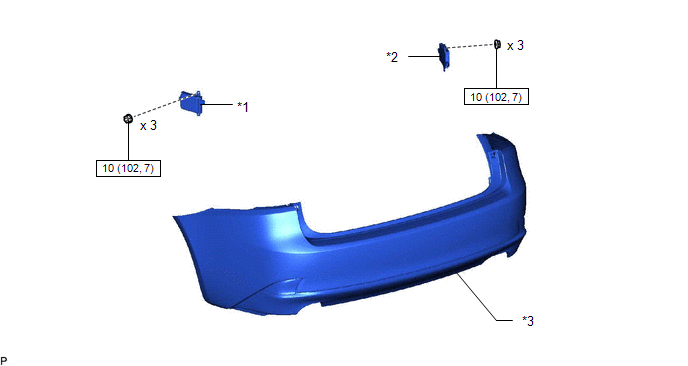

Fig 1: Blind Spot Monitor Sensor Replacement Components With Torque Specifications [04/2013 - 10/2016]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
BLIND SPOT MONITOR SENSOR LH
*2
BLIND SPOT MONITOR SENSOR RH
*3
REAR BUMPER ASSEMBLY
-
-
N.m (kgf/cm, ft.lbf) : Specified torque
-
-
