Telematics System - Diagnostics - Introduction
>>
Telematics System
>>
System Diagram [06/2014 - 10/2017]
>>
System Diagram [06/2014 - 10/2017]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [06/2014 - 10/2017]

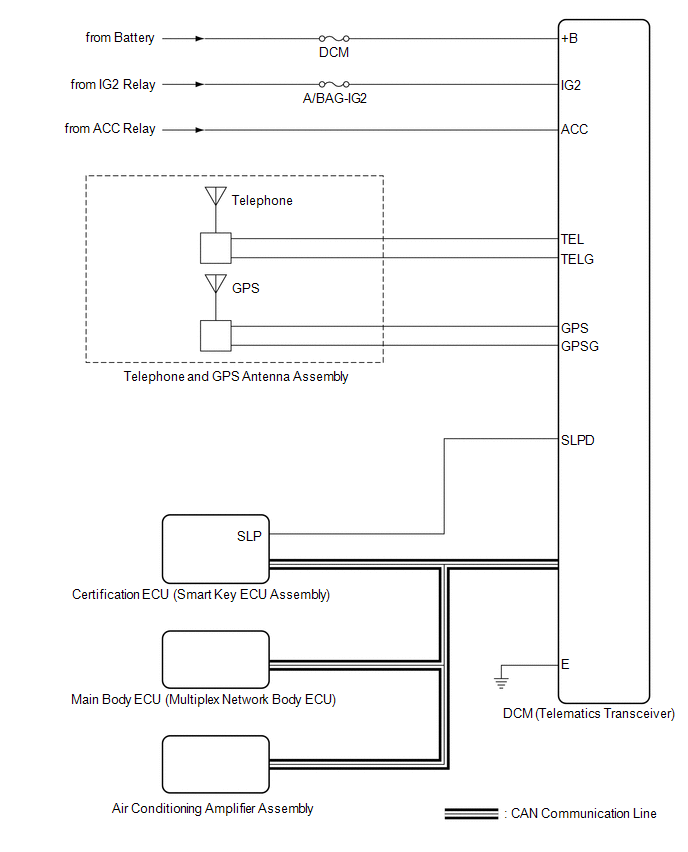

Fig 1: Telematics System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
