Components [09/2020 - ]

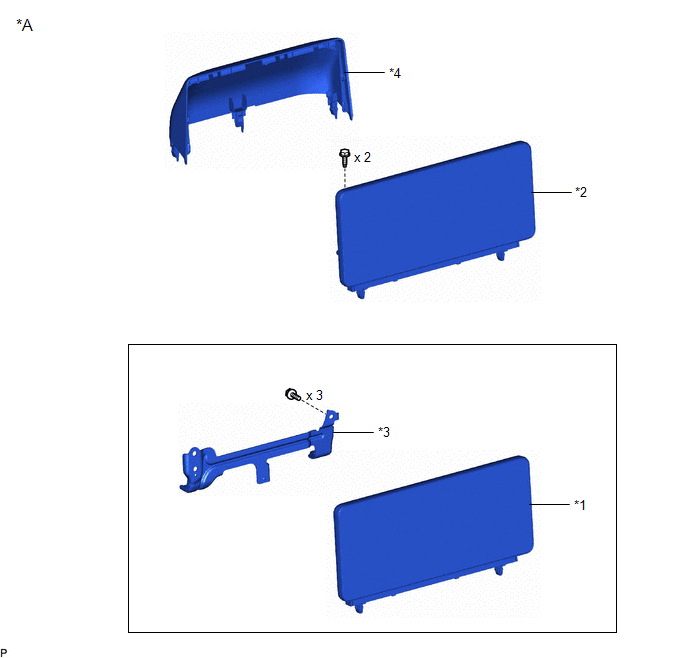

Fig 1: Multi-Display Replacement Components [09/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 8 Inch Display	-	-
*1	MULTI-DISPLAY ASSEMBLY	*2	MULTI-DISPLAY ASSEMBLY WITH BRACKET
*3	NO. 1 MULTI-DISPLAY BRACKET	*4	NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

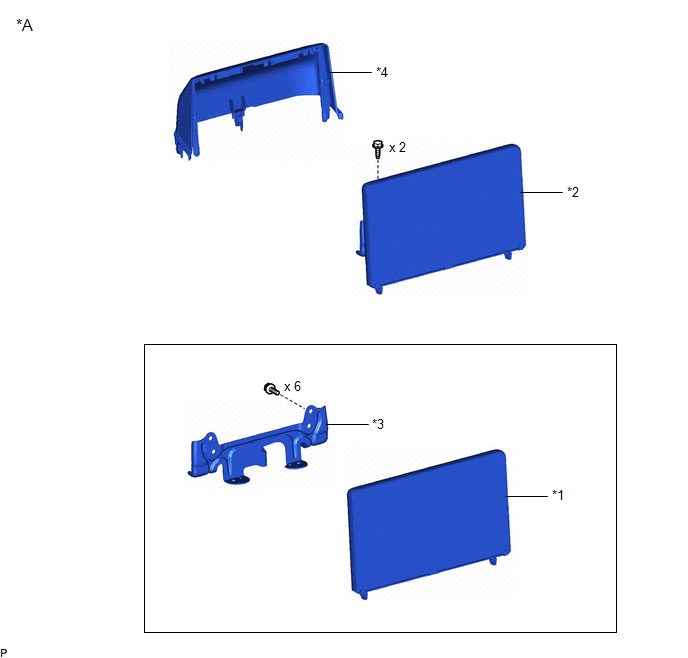

Fig 2: Multi-Display Replacement Components [09/2020 - ] (2 Of 2)

*A	for 10.3 Inch Display	-	-
*1	MULTI-DISPLAY ASSEMBLY	*2	MULTI-DISPLAY ASSEMBLY WITH BRACKET
*3	NO. 1 MULTI-DISPLAY BRACKET	*4	NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
