Installation [10/2016 - 09/2020]: Procedure

INSTALL MULTI-DISPLAY ASSEMBLY
INSTALL NO. 1 MULTI-DISPLAY BRACKET
1. Install the No. 1 multi-display bracket with the 2 screws.

INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET

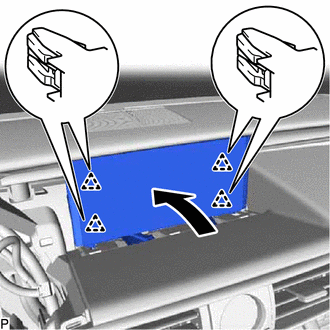

Push the multi-display assembly with bracket as shown in the illustration to engage the 4 clips.

INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 13 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 13 [10/2017 - 09/2020]
INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 35 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 35 [10/2017 - 09/2020]
INSTALL METER HOOD SUB-ASSEMBLY
Refer to PROCEDURE - Step 32 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 32 [10/2017 - 09/2020]
CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 36 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 36 [10/2017 - 09/2020]
INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 37 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 37 [10/2017 - 09/2020]
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Refer to INITIALIZATION [10/2016 - 10/2017] , or refer to INITIALIZATION [10/2017 - 09/2020]
CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM (for Power Tilt and Power Telescopic Steering Column)
Refer to PROCEDURE - Step 16 [10/2016 - 10/2017] , or refer to PROCEDURE - Step 16 [10/2017 - 09/2020]
