Reassembly [10/2016 - 09/2020]: Procedure

  1. INSTALL FRONT ESCUTCHEON (for 7 Inch Display)
    1. Engage the 3 claws and 2 guides as shown in the illustration.
      GTY646164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

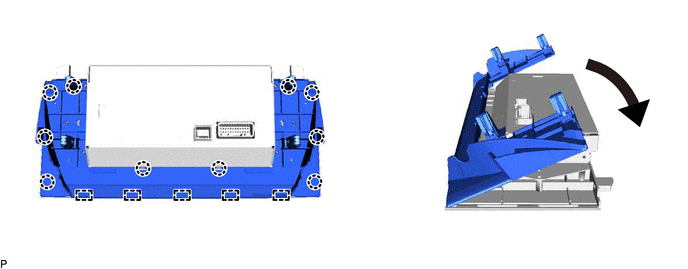

    2. Engage the 5 guides and 10 claws as shown in the illustration.
      GTY638536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that there is no clearance between the front escutcheon and rear escutcheon as shown in the illustration.

      Standard Measurement

      Area Measurement
      A 0 mm (0 in.)
      B 0 mm (0 in.)
      GTY635884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the front escutcheon and rear escutcheon with the 6 screws.
      GTY679916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the release paper from a new insulator.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

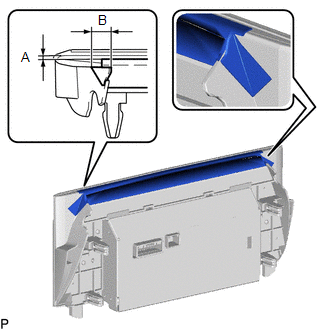

    6. Install the insulator as shown in the illustration.
      GTY821982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Measurement

      Area Measurement
      A 0 to 2.0 mm (0 to 0.0787 in.)
      B 0 to 10.0 mm (0 to 0.394 in.)
  2. INSTALL FRONT ESCUTCHEON (for 10.3 Inch Display)

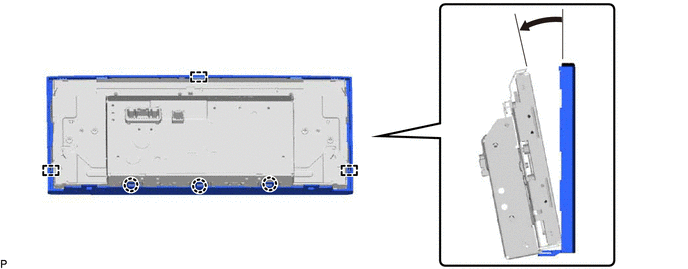

    1. Engage the 3 claws and 3 guides as shown in the illustration.
      GTY638790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

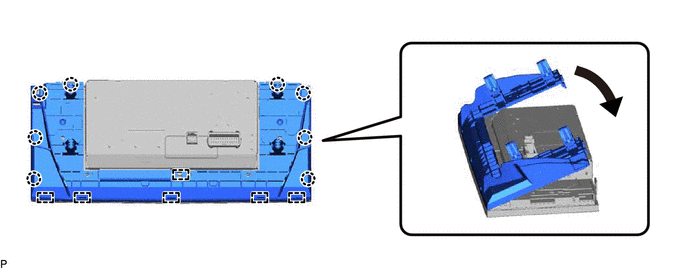

    2. Engage the 6 guides and 8 claws as shown in the illustration.
      GTY638785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

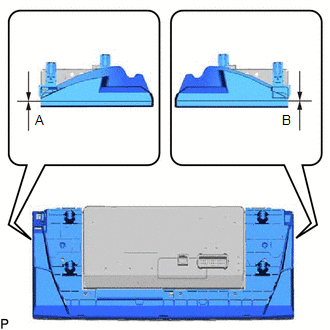

    3. Check that there is no clearance between the front escutcheon and rear escutcheon as shown in the illustration.

      Standard Measurement

      Area Measurement
      A 0 mm (0 in.)
      B 0 mm (0 in.)
      GTY635835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

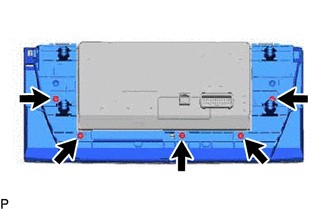

    4. Install the front escutcheon and rear escutcheon with the 5 screws.
      GTY638776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the release paper from a new insulator.

      HINT:

      After removing the release paper, keep the exposed adhesive free from foreign matter.

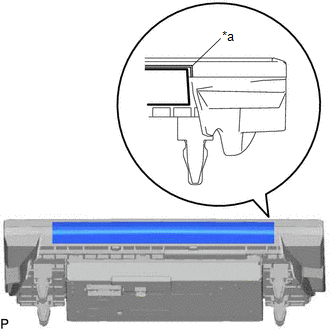

    6. Install the insulator as shown in the illustration.
      GTY644153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Line

      HINT:

      Install the insulator along the line on the front escutcheon.
