Components [10/2016 - 09/2020]

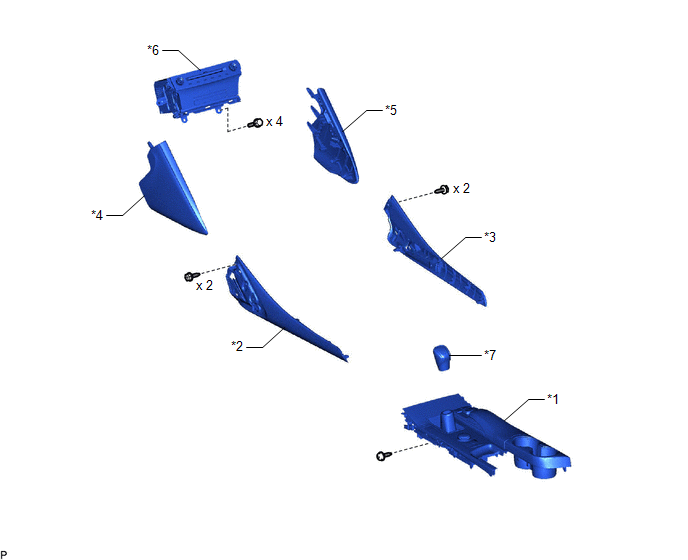

Fig 1: Navigation Receiver Replacement Components [10/2016 - 09/2020] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONSOLE PANEL SUB-ASSEMBLY	*2	FRONT PANEL GARNISH LH
*3	FRONT PANEL GARNISH RH	*4	INSTRUMENT PANEL FINISH PANEL END LH
*5	INSTRUMENT PANEL FINISH PANEL END RH	*6	RADIO RECEIVER ASSEMBLY WITH BRACKET
*7	SHIFT LEVER KNOB SUB-ASSEMBLY	-	-

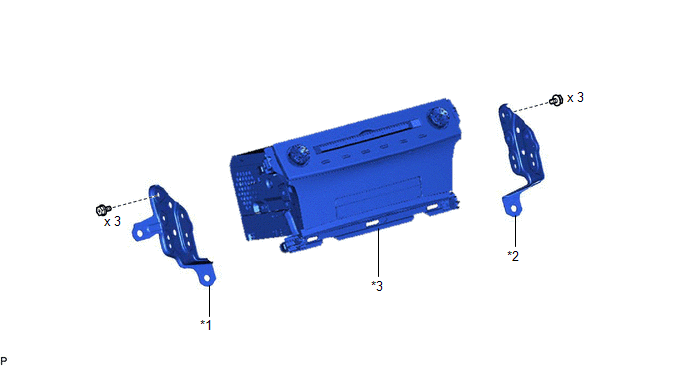

Fig 2: Navigation Receiver Replacement Components [10/2016 - 09/2020] (2 Of 2)

*1	NO. 1 RADIO BRACKET	*2	NO. 2 RADIO BRACKET
*3	RADIO RECEIVER ASSEMBLY	-	-
