Components [04/2013 - 10/2017]

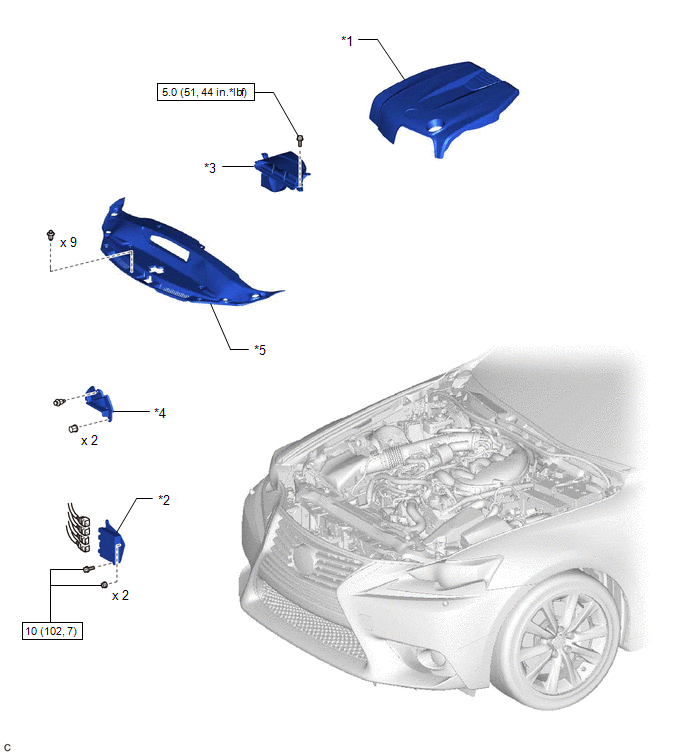

Fig 1: Injector Driver Replacement Components With Torque Specifications
GTY466507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 V-BANK COVER SUB-ASSEMBLY *2 INJECTOR DRIVER
*3 INLET NO. 1 AIR CLEANER *4 NO. 1 ENGINE COVER
*5 COOL AIR INTAKE DUCT SEAL - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
