DTC C1A75-87: Steering Vibrator System Missing Message [09/2020 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2024 Lexus IS 500, 2024 Lexus IS 350, 2024 Lexus IS 300, 2023 Lexus IS 500, and 2023 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SPIRAL CABLE SUB-ASSEMBLY
Refer to INSPECTION [10/2016 - ]

Result

Proceed to

OK

NG

Result:

NG

REPLACE SPIRAL CABLE SUB-ASSEMBLY. Refer to REMOVAL [10/2016 - ]

Result:

OK

See step 2

INSPECT FORWARD RECOGNITION CAMERA (WAVEFORM)

Turn the engine switch on (IG).

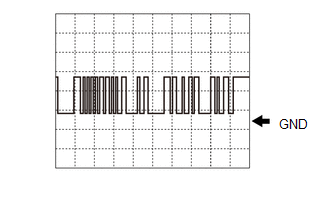

Using an oscilloscope, measure the waveform at the K26 spiral cable sub-assembly connector.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measurement Condition

Tester Connection	Condition	Tester Range
K26-9 (LDA) - Body ground	Engine switch on (IG)	5 V/DIV., 1 ms/DIV.

NOTE:

The oscilloscope waveform is for reference only and does not include noise, fluctuations, etc.

A waveform similar to that in the illustration can be observed.

Result

Proceed to
OK
NG

Result:

See step 5

Result:

See step 3

CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - POWER SOURCE)

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
K140-4 (BHT) - Body ground	Engine switch on (IG)	11 to 14 V

Result

Proceed to
OK
NG

Result:

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

See step 4

CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - BODY GROUND)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
K140-2 (EHT) - Body ground	Always	Below 1 Ω

Result

Proceed to
OK
NG

Result:

REPLACE STEERING VIBRATION ECU. Refer to REMOVAL [10/2016 - 11/2021] , or refer to REMOVAL [11/2021 - ]

Result:

REPAIR OR REPLACE HARNESS OR CONNECTOR

CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSEMBLY - FORWARD RECOGNITION CAMERA)

Disconnect the S18 forward recognition camera connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
K26-9 (LDA) - S18-2 (STRV)	Always	Below 1 Ω
K26-9 (LDA) or S18-2 (STRV) - Body ground	Engine switch off	10 kΩ or higher

Result

Proceed to
OK
NG

Result:

REPLACE FORWARD RECOGNITION CAMERA. Refer to REMOVAL [09/2020 - ]

Result:

REPAIR OR REPLACE HARNESS OR CONNECTOR
