Installation [04/2013 - 08/2015]: Procedure

HINT:

Perform "Inspection After Repair" after replacing a spark plug.

Refer to INITIALIZATION [04/2013 - 08/2015]

1. Install the 6 spark plugs to the cylinder head sub-assembly.

   Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)

   NOTE:

   If a spark plug has been struck or dropped, replace it.

   HINT:

   Install the same parts to their original positions.

HINT:

Perform "Inspection After Repair" after replacing an ignition coil assembly.

Refer to INITIALIZATION [04/2013 - 08/2015]

1. Install the 6 ignition coil assemblies to the cylinder head cover sub-assembly with the 6 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   NOTE:

   If an ignition coil assembly has been struck or dropped, replace it.

   HINT:

   Install the same parts to their original positions.

2. Connect the 6 ignition coil assembly connectors.

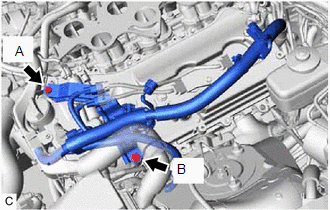

3. Connect the ignition coil cover bracket to the cylinder head cover sub-assembly LH with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt A

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

   Bolt B

   Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)

4. Connect the wire harness to the cylinder head cover sub-assembly with the 2 nuts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Refer to INSTALLATION [04/2013 - 08/2015]

1. Perform "Inspection After Repair" after replacing an ignition coil assembly and spark plug.

   Refer to INITIALIZATION [04/2013 - 08/2015]
