Installation [04/2013 - 08/2015]: Procedure
WARNING: This page is about a different car, the 2015 Lexus IS 250 and 2014 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL KNOCK CONTROL SENSOR
HINT:
Perform "Inspection After Repair" after replacing a knock control sensor.
Refer to INITIALIZATION [04/2013 - 08/2015]

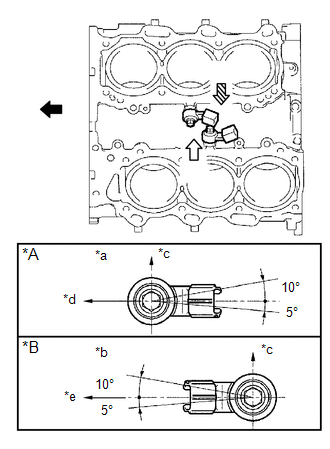

- Install the 2 knock control sensors to the cylinder block sub-assembly with the 2 bolts so that the knock control sensor installation position is as shown in the illustration.
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
NOTE:Make sure that each knock control sensor is in the correct position.
*A for Bank 1 *B for Bank 2 *a View A *b View B *c Top *d Engine Front *e Engine Rear Front View A View B - Connect the 2 knock control sensor connectors.
- Install the 2 knock control sensors to the cylinder block sub-assembly with the 2 bolts so that the knock control sensor installation position is as shown in the illustration.
- INSTALL FUEL INJECTOR SEAL
Refer to INSTALLATION [04/2013 - 08/2015]
- PERFORM INITIALIZATION
- Perform "Inspection After Repair" after replacing a knock control sensor.
Refer to INITIALIZATION [04/2013 - 08/2015]
- Perform "Inspection After Repair" after replacing a knock control sensor.
