Components [04/2013 - 10/2016]

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Lexus IS 350, 2016 Lexus IS 300, 2016 Lexus IS 200t, 2015 Lexus IS 350, and 2015 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

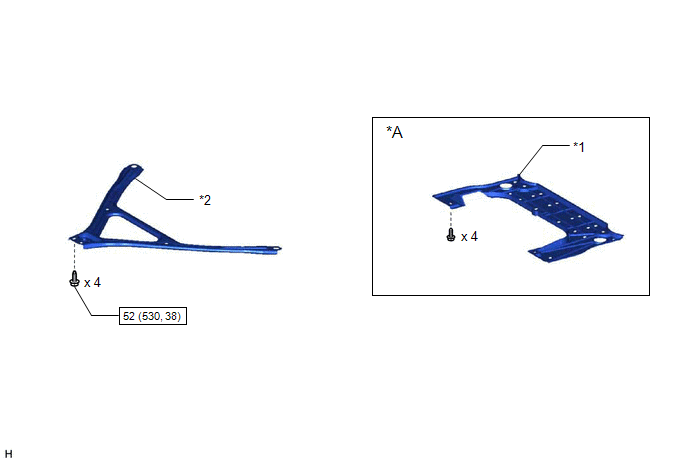

Fig 1: Steering Actuator Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ NO. 2 ENGINE UNDER COVER	-	-
*1	NO. 2 ENGINE UNDER COVER	*2	FRONT SUSPENSION MEMBER BRACE
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

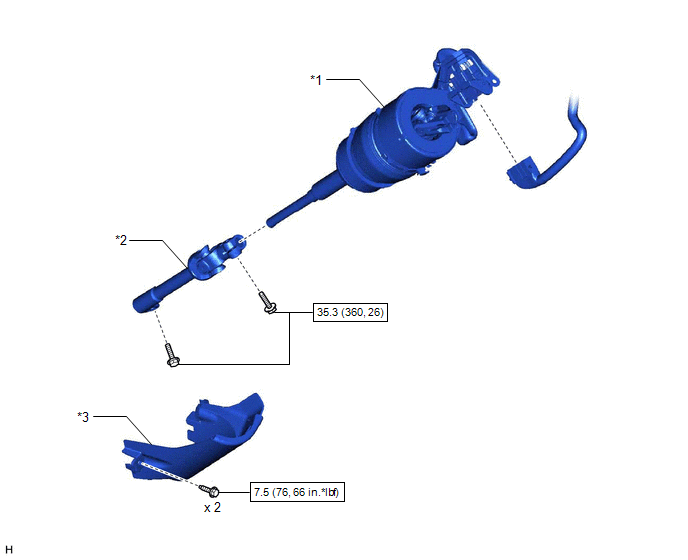

Fig 2: Steering Actuator Replacement Components With Torque Specifications (2 Of 2)

*1	STEERING ACTUATOR ASSEMBLY	*2	STEERING SLIDING YOKE SUB-ASSEMBLY
*3	LOWER MAIN SHAFT DUST COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
