Components [04/2013 - ]

WARNING: This page is about a different variant/trim than selected.

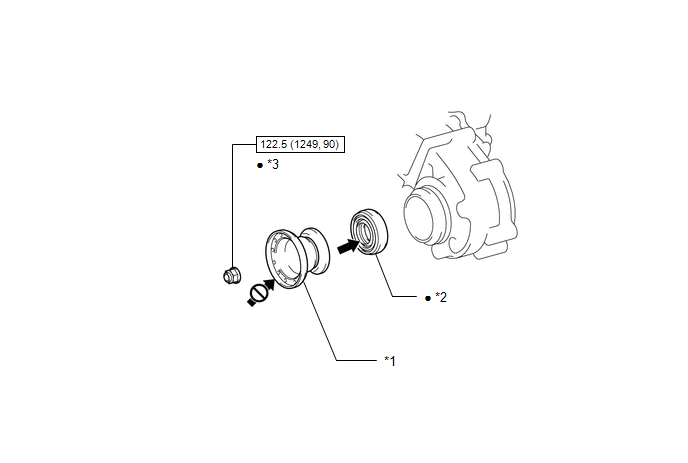

Fig 1: Transfer Case Front Oil Seal Replacement Components With Torque Specifications
GTY470307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FLANGE YOKE ASSEMBLY *2 TRANSFER CHAIN CASE OIL SEAL
*3 FLANGE YOKE NUT - -
N.m (kgf/cm, ft.lbf) : Specified torque • Non-reusable part
MP Grease Do not apply lubricants
