Removal [04/2013 - 08/2015]: Procedure

Refer to PROCEDURE - Step 1

• for 2GR-FSE: Refer to REMOVAL [04/2013 - 10/2016]
• for 4GR-FSE: Refer to REMOVAL [04/2013 - 08/2015]

Refer to PROCEDURE - Step 2

Refer to PROCEDURE - Step 11

1. Remove the 4 bolts and separate the rear engine mounting member sub-assembly from the body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 nuts and rear engine mounting member from the automatic with transfer transmission assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 bolts and the transfer dynamic damper.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 9 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Insert the blade of an oil pan seal cutter between the transfer oil pan sub-assembly and transfer case sub-assembly. Cut through the sealer and remove the transfer oil pan sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the contact surface of the transfer oil pan sub-assembly.

3. Remove the transfer oil cleaner magnet from the transfer oil pan sub-assembly.
   NOTE:

   • Clean the inside of the transfer oil pan sub-assembly thoroughly, removing all metal shavings, sludge and any other foreign objects.
   • Remove any metal shavings from the transfer oil cleaner magnet.

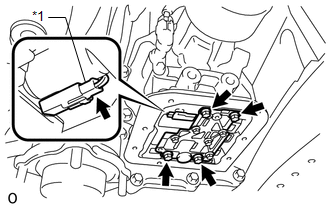

1. Remove the 4 bolts and the transfer control valve body assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1

   Connector

2. Disconnect the connector from the transfer control solenoid assembly.

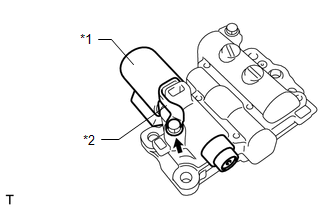

1. Remove the bolt, solenoid lock plate and transfer control solenoid assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Transfer Control Solenoid Assembly
   *2	Solenoid Lock Plate
