Components [04/2013 - ]

WARNING: This page is about a different variant/trim than selected.

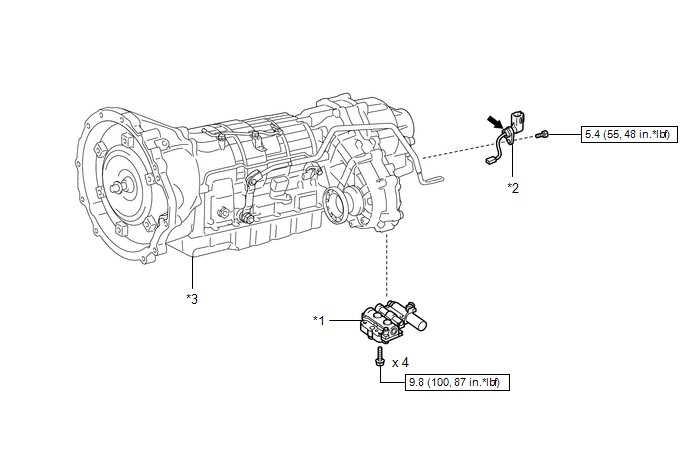

Fig 1: Transfer Wire Replacement Components With Torque Specifications
GTY467176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSFER CONTROL VALVE BODY ASSEMBLY *2 TRANSFER TRANSMISSION WIRE
*3 AUTOMATIC WITH TRANSFER TRANSMISSION ASSEMBLY - -
N.m (kgf/cm, ft.lbf) : Specified torque Toyota Genuine ATF WS
