LEXUS ENFORM System (Diagnostics - Introduction)
>>
LEXUS ENFORM System
>>
System Diagram [09/2015 - ]
>>
System Diagram [09/2015 - ]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram [09/2015 - ]

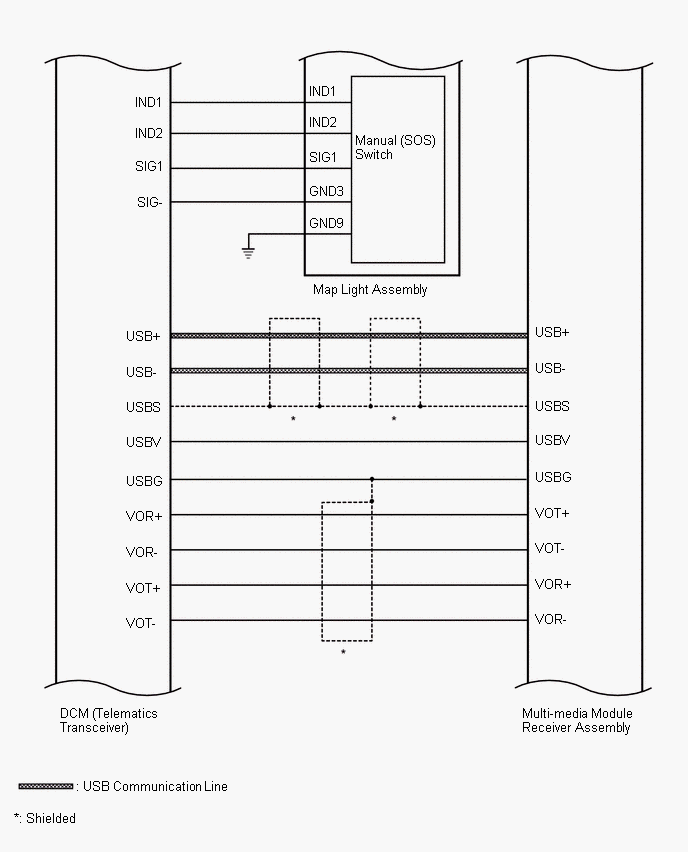

Fig 1: Lexus Enform System Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

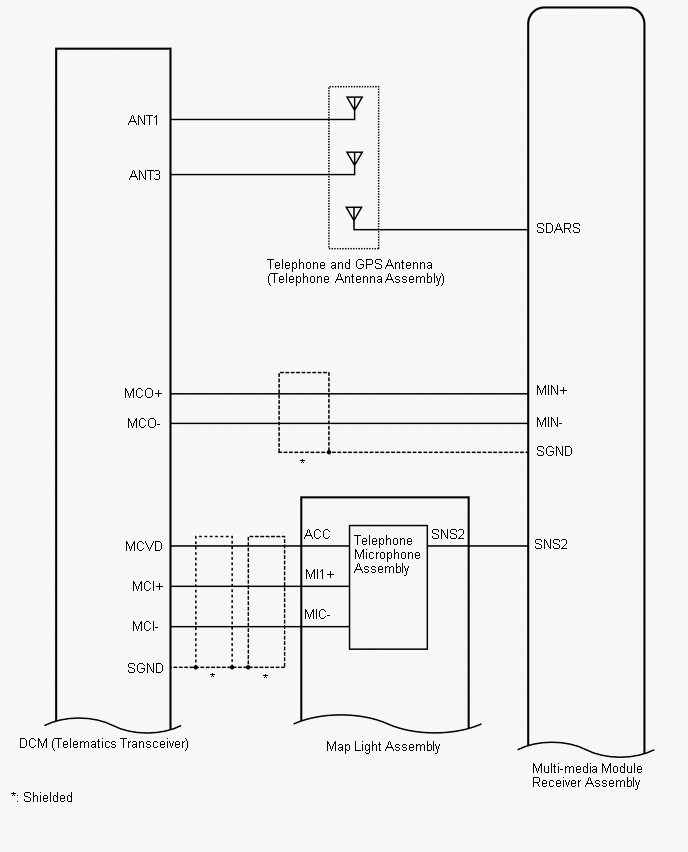

Fig 2: Lexus Enform System Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Lexus Enform System Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
