Components [09/2015 - ]: Illustration

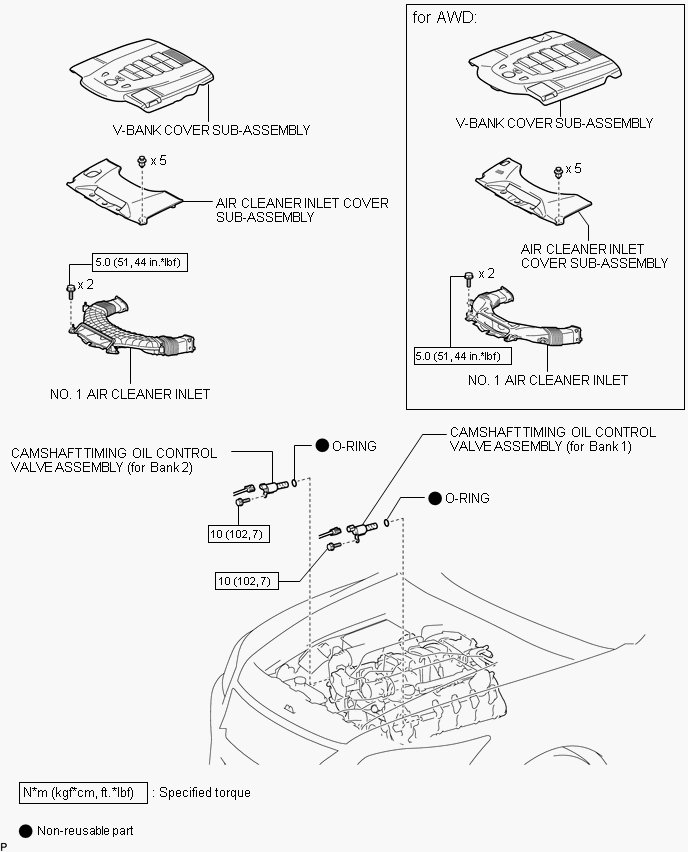

Fig 1: Camshaft Oil Control Valve Component Location With Torque Specifications
GTY670086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
