DTC P0192: Fuel Rail Pressure Sensor Circuit Low Input; DTC P0193: Fuel Rail Pressure Sensor Circuit High Input [09/2015 - ]: Wiring Diagram

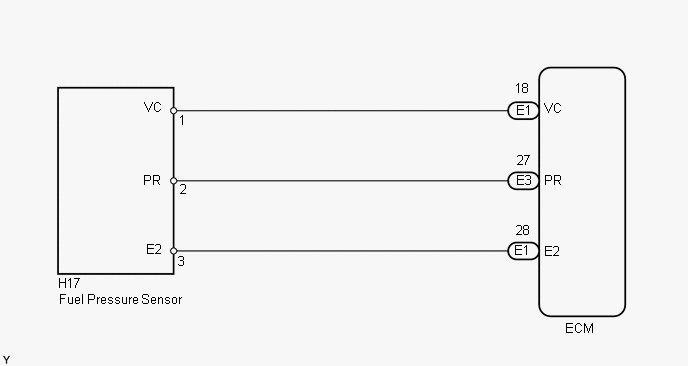

Fig 1: Fuel Pressure Circuit Diagram
GTY657329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
