DTC P0705: Transmission Range Sensor Circuit (PRNDL Input) [09/2015 - ]: Procedure
- READ VALUE USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / All Data /
- According to the display on the Techstream.
OK
Tester Display Shift Lever Position Specified Condition Neutral Position SW Signal N → R → P ON → OFF → ON Shift SW Status (R Range) N → R OFF → ON Shift SW Status (P Range) P ON Shift SW Status (N Range) N ON Shift SW Status (D Range) N → D OFF → ON
Result: OK
OK
See step 5
Result: NG
NG
See step 2

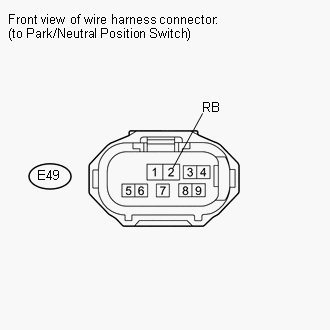

- CHECK HARNESS AND CONNECTOR (BATTERY - PARK/NEUTRAL POSITION SWITCH)
- Disconnect the E49 park/neutral position switch.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition E49-2 (RB) - Body ground Engine switch on (IG) 11 to 14 V
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result: OK
OK
See step 3

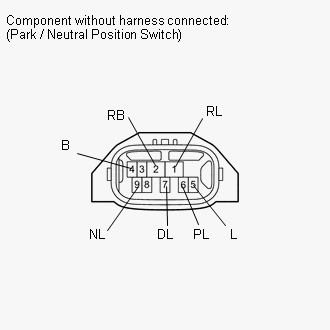

- INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
- Disconnect the E49 park/neutral position switch connector.
- Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard resistance
Tester Connection Shift Lever Position Specified Condition 2 (RB) - 6 (PL)
4 (B) - 5 (L)P Below 1 Ω Except P, N 10 kΩ or higher 1 (RL) - 2 (RB) R Below 1 Ω Except R 10 kΩ or higher 2 (RB) - 9 (NL)
4 (B) - 5 (L)N Below 1 Ω Except N, P 10 kΩ or higher 2 (RB) - 7 (DL) D, M (or S), "+" or "-" Below 1 Ω Not in D, M (or S), "+" or "-" 10 kΩ or higher RESULTResult Proceed to OK A NG (for 2WD) B NG (for AWD) C - Reconnect the E49 park/neutral position switch.
Result: B
B
REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(Refer to REMOVAL [09/2015 - ] )
Result: C
C
REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(Refer to REMOVAL [09/2015 - ] )
Result: A
A
See step 4

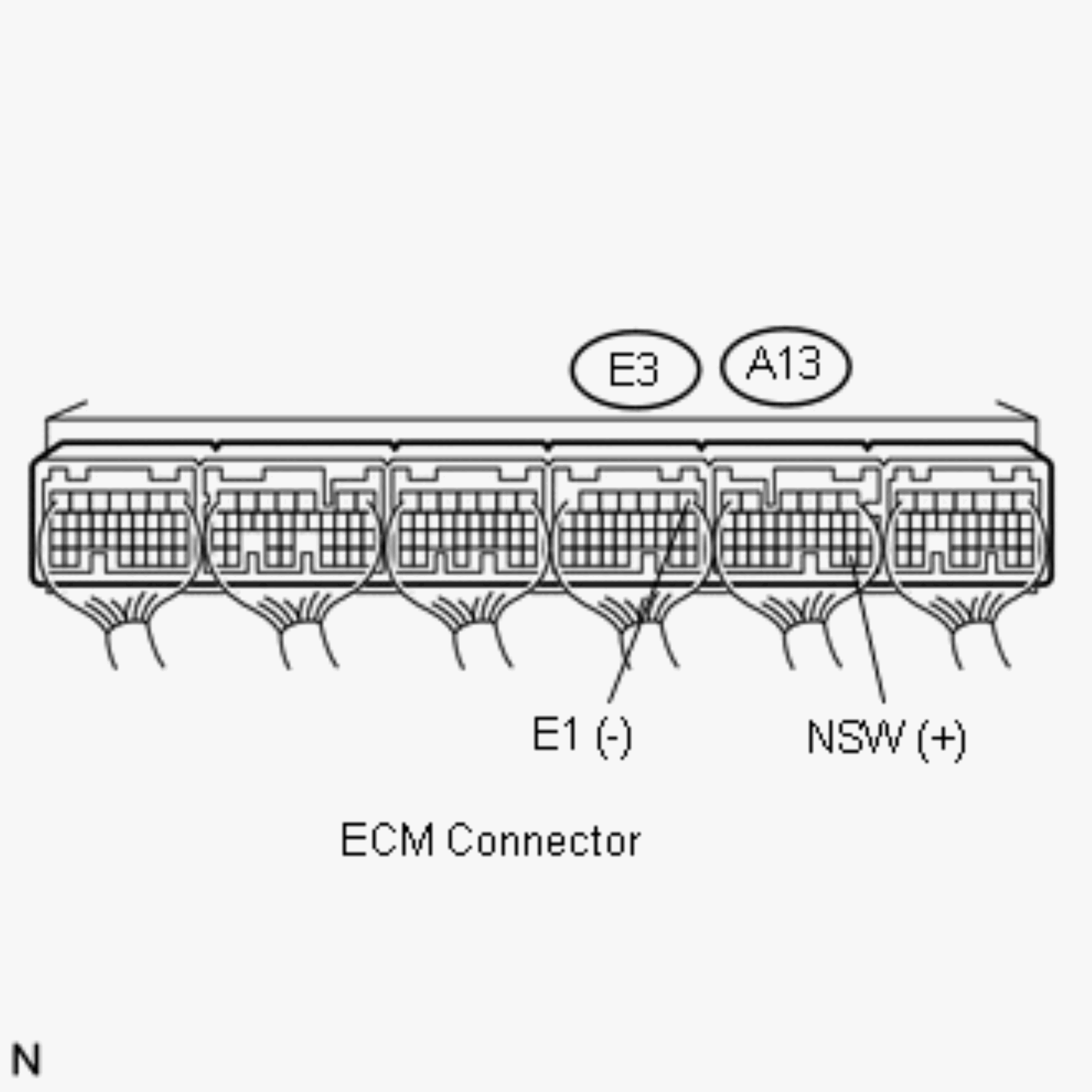

- CHECK HARNESS AND CONNECTOR (ECM - PARK/NEUTRAL POSITION SWITCH)
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Shift Lever Position Switch Condition Specified Condition A13-29 (NSW) - E3-1 (E1) P or N Engine switch on (IG) 0 to 1.5 V Except P or N Engine switch on (IG) 11 to 14 V - Turn the engine switch off.

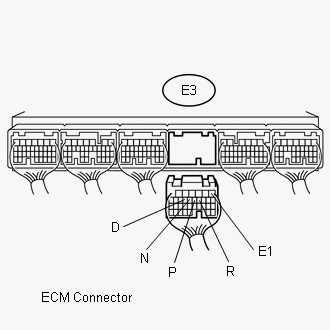

- Disconnect the E3 ECM connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Shift Lever Position Switch Condition Specified Condition E3-12 (P) - E3-1 (E1) P Engine switch on (IG) 11 to 14 V Except P Engine switch on (IG) 0 to 1.5 V E3-11 (R) - E3-1 (E1) R Engine switch on (IG) 11 to 14 V Except R Engine switch on (IG) 0 to 1.5 V E3-13 (N) - E3-1 (E1) N Engine switch on (IG) 11 to 14 V Except N Engine switch on (IG) 0 to 1.5 V E3-14 (D) - E3-1 (E1) D Engine switch on (IG) 11 to 14 V Except D Engine switch on (IG) 0 to 1.5 V
Result: OK
OK
REPLACE ECM
(Refer to REMOVAL [09/2015 - ] )
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Turn the engine switch on (IG).
- READ VALUE USING TECHSTREAM
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG).
- Turn the Techstream on.
- Enter the following menus: Powertrain / Engine / Data List / All Data /
- According to the display on the Techstream.
OK
Tester Display Shift Lever Position Specified Condition Sports Mode Selection SW D → M or S OFF → ON
Result: OK
OK
CHECK FOR INTERMITTENT PROBLEMS
(Refer to CHECK FOR INTERMITTENT PROBLEMS [09/2015 - ] )
Result: NG
NG
See step 6

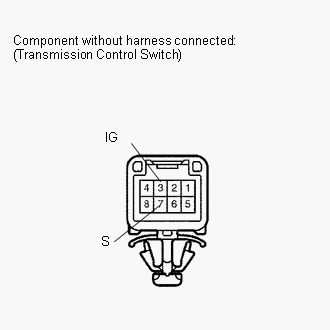

- INSPECT TRANSMISSION CONTROL SWITCH
- Disconnect the L42 transmission control switch connector of the shift lock control unit assembly.
- Measure the resistance according to the value(s) in the table below when the shift lever is moved to each position.
Standard resistance
Tester Connection Shift Lever Position Condition Specified Condition 3 (IG) - 7 (S) M (or S), "+" or "-" Always Below 1 Ω Not in M (or S), "+" or "-" Always 10 kΩ or higher
Result: NG
NG
REPLACE TRANSMISSION CONTROL SWITCH
Result: OK
OK
See step 7
- Disconnect the L42 transmission control switch connector of the shift lock control unit assembly.

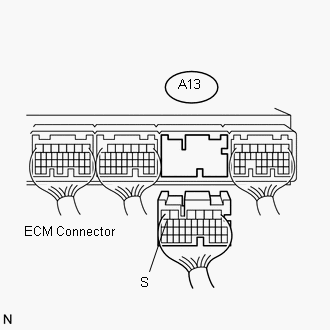

- CHECK HARNESS AND CONNECTOR (ECM CONNECTOR - BODY GROUND)
- Disconnect the A13 ECM connector.
- Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Shift Lever Position Switch Condition Specified Condition A13-16 (S) - Body ground M (or S), "+" or "-" Engine switch on (IG) 11 to 14 V* Not in M (or S), "+" or "-" Engine switch on (IG) 0 to 1.5 V* HINT:
*: The voltage will drop slightly due to the turning on of the back up light.
Result: OK
OK
REPLACE ECM
(Refer to REMOVAL [09/2015 - ] )
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
