Power Source Circuit [09/2015 - ]: Procedure

  1. INSPECT FUSE (STR LOCK)
    1. Remove the STR LOCK fuse from the main body ECU.
    2. Measure the resistance of the fuse.

      Standard resistance

      Tester Connection Condition Specified Condition
      STR LOCK fuse Always Below 1 Ω

    Result:  NG

    NG

    REPLACE FUSE

    Result:  OK

    OK

    See step  2

  2. CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR - BODY GROUND)

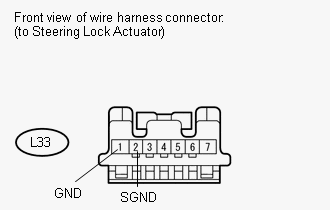

    GTY662055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L33 steering lock actuator connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      L33-1 (GND) - Body ground Always Below 1 Ω
      L33-2 (SGND) - Body ground Always Below 1 Ω

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:  OK

    OK

    See step  3

  3. CHECK HARNESS AND CONNECTOR (BATTERY - STEERING LOCK ACTUATOR)

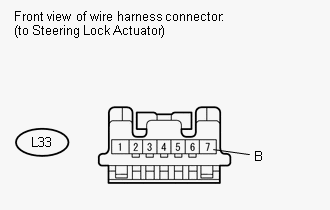

    GTY626238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L33 steering lock actuator connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      L33-7 (B) - Body ground Always 11 to 14 V

    Result:  OK

    OK

    PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    (Refer to PROBLEM SYMPTOMS TABLE [09/2015 - ] )

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
