Steering Lock Motor Drive Power Circuit [09/2015 - ]: Wiring Diagram

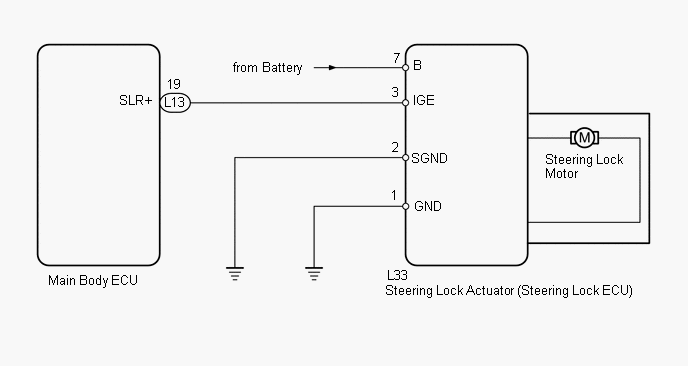

Fig 1: Steering Lock Motor Drive Power Circuit Diagram
GTY678195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
