Unable to Unlock Steering Wheel [09/2015 - ]: Procedure

1. Check the power source mode change.
   1. When the key is inside the vehicle and the shift lever is in P, check that pressing the engine switch causes the power source mode to change as follows:

      OK

      off → on(ACC) → on(IG) → off

Result:  NG

NG

GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START (POWER SOURCE MODE DOES NOT CHANGE)

(Refer to Power Source Mode does not Change [09/2015 - ] )

Result:  OK

OK

See step  2

1. Check the DTCs of the main body ECU by following the prompts displayed on the Techstream screen (Refer to DTC CHECK / CLEAR [09/2015 - ] ).

   OK

   No DTCs related to main body ECU are output.

Result:  NG

NG

GO TO RELEVANT DTC

(Refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - ] )

Result:  OK

OK

See step  3

1. Check the DTCs of the certification ECU by following the prompts displayed on the Techstream screen (Refer to DTC CHECK / CLEAR [09/2015 - ] ).

   OK

   No DTCs related to certification ECU are output.

Result:  NG

NG

GO TO RELEVANT DTC

(Refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - ] )

Result:  OK

OK

See step  4

1. Within 10 seconds of the engine switch being turned on (IG), check the Data List and read the value displayed on the Techstream screen.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Lock/Unlock Receive	Steering lock command reception record/ Yes or No	Yes: Steering lock/unlock signal received No: Steering lock/unlock signal not received	-

   OK

   YES is displayed on the Techstream screen.

Result:  NG

NG

See step  7

Result:  OK

OK

See step  5

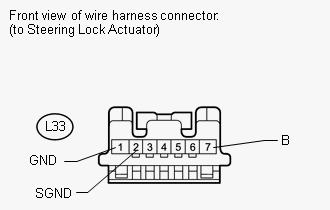

1. Disconnect the L33 steering lock ECU connector.
2. Measure the resistance and voltage according to the value(s) in the table below.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   L33-7 (B) - L33-1 (GND)	Always	11 to 14 V
   L33-7 (B) - L33-2 (SGND)	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   L33-1 (GND) - Body ground	Always	Below 1 Ω
   L33-2 (SGND) - Body ground	Always	Below 1 Ω

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  6

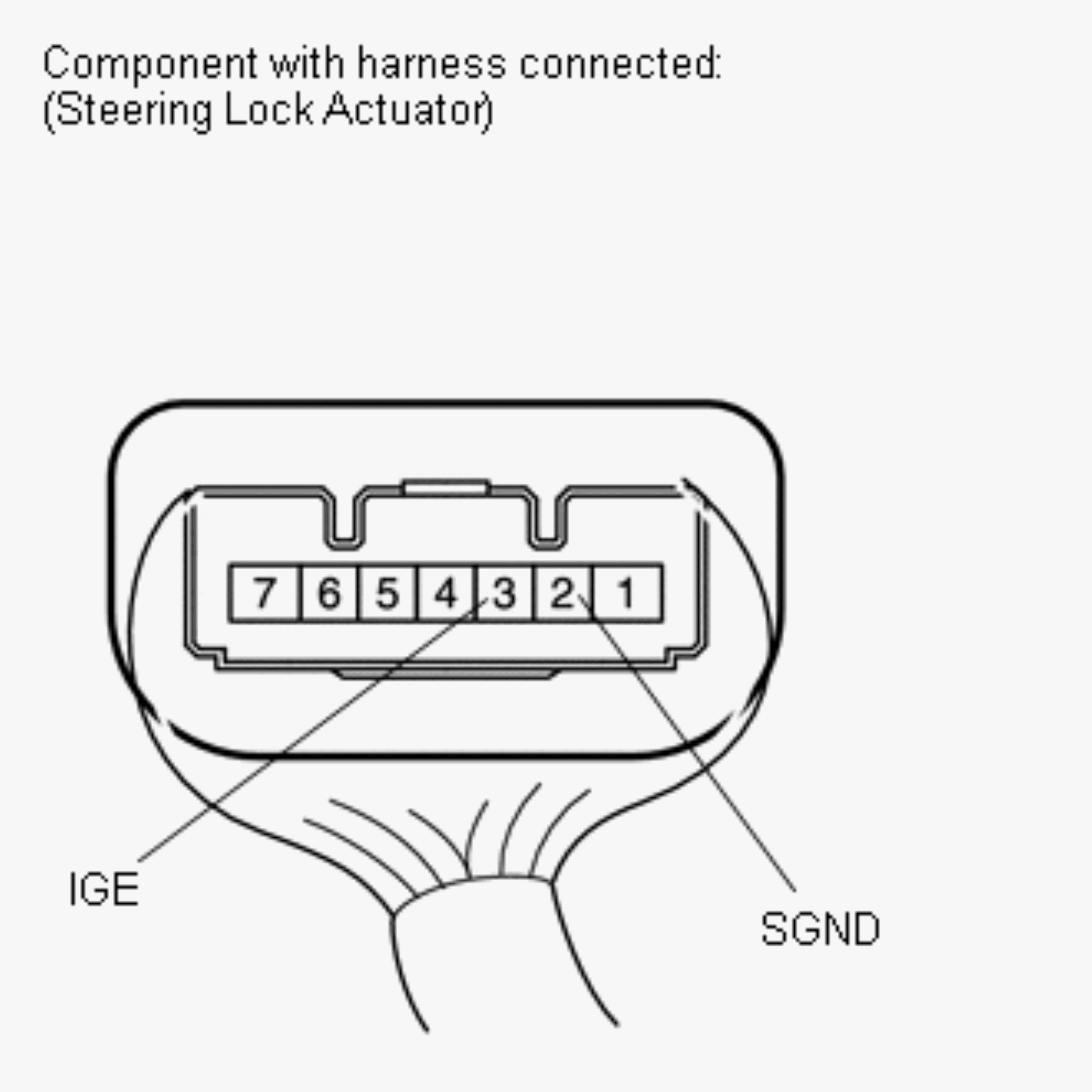

1. Move the shift lever to P.
2. Immediately after turning the engine switch on (IG), inspect the voltage between terminals 3 (IGE) and 2 (SGND) of the steering lock ECU.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   RESULT



   Result	Proceed to
   Measurement is 11 to 14 V, and measurement never becomes 1 V or less	A
   Immediately after turning engine switch on (IG), measurement is 1 V or less (w/ VGRS)	B
   Immediately after turning engine switch on (IG), measurement is 1 V or less (w/o VGRS)	C

Result:  A

A

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  B

B

REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

(Refer to REMOVAL [09/2015 - ] )

Result:  C

C

REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

(Refer to REMOVAL [09/2015 - ] )

1. Use the Data List to check if the S code certification is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   S Code Check	S code match record/ NG or OK	NG: S code not matched OK: S code matched	-

   OK

   OK is displayed on the Techstream.

Result:  NG

NG

See step  11

Result:  OK

OK

See step  8

1. Use the Data List to check if the L code certification is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   L Code Check	L code match record/ NG or OK	NG: L code not matched OK: L code matched	-

   OK

   OK is displayed on the Techstream.

Result:  NG

NG

See step  13

Result:  OK

OK

See step  9

1. Replace the steering lock actuator assembly (steering lock ECU) (w/ VGRS: Refer to REMOVAL [09/2015 - ] , w/o VGRS: Refer to REMOVAL [09/2015 - ] ).

Result:  NEXT

NEXT

See step  10

1. Turn the engine switch on (IG).
2. Operate the steering wheel and check the steering lock condition.

   OK

   Steering lock is released.

Result:  OK

OK

END (STEERING LOCK ECU IS DEFECTIVE)

Result:  NG

NG

REPLACE CERTIFICATION ECU

1. Replace the ID code box.

Result:  NEXT

NEXT

See step  12

1. Use the Data List to check if the S code certification is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   S Code Check	S code match record/ NG or OK	NG: S code not matched OK: S code matched	-

   OK

   OK is displayed on the Techstream.

Result:  OK

OK

END (ID CODE BOX IS DEFECTIVE)

Result:  NG

NG

REPLACE CERTIFICATION ECU

1. Replace the ID code box.

Result:  NEXT

NEXT

See step  14

1. Use the Data List to check if the L code certification is functioning properly.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   L Code Check	L code match record/ NG or OK	NG: L code not matched OK: L code matched	-

   OK

   OK is displayed on the Techstream.

   RESULT



   Result	Proceed to
   OK	A
   NG (w/ VGRS)	B
   NG (w/o VGRS)	C

Result:  A

A

END (ID CODE BOX IS DEFECTIVE)

Result:  B

B

REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

(Refer to REMOVAL [09/2015 - ] )

Result:  C

C

REPLACE STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

(Refer to REMOVAL [09/2015 - ] )
