Unlock Position Sensor Signal Circuit [09/2015 - ]: Procedure

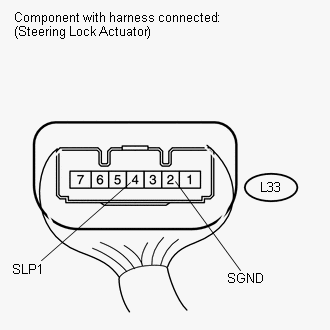

- CHECK STEERING LOCK ACTUATOR (SLP1 VOLTAGE)
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Condition (Steering Lock Position) Specified Condition L33-4 (SLP1) - L33-2 (SGND) Locked 11 to 14 V L33-4 (SLP1) - L33-2 (SGND) Unlocked Below 1 V
Result: OK
OK
GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START
(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2015 - ] )
Result: NG
NG
See step 2
- Measure the voltage according to the value(s) in the table below.

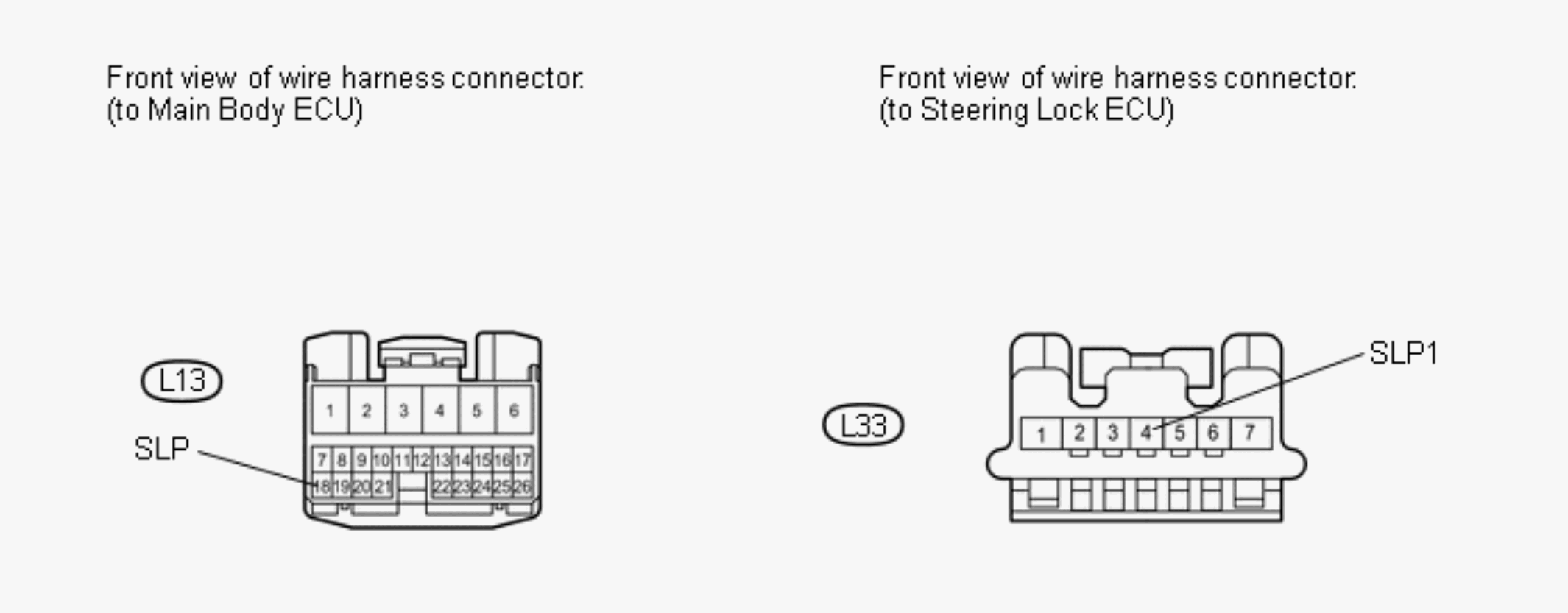

- CHECK HARNESS AND CONNECTOR (STEERING LOCK ACTUATOR - MAIN BODY ECU)
- Disconnect the L13 main body ECU connector.
- Disconnect the L33 steering lock actuator connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition L13-18 (SLP) - L33-4 (SLP1) Always Below 1 Ω L33-4 (SLP1) - Body ground Always 10 kΩ or higher
Result: OK
OK
REPLACE STEERING LOCK ACTUATOR
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
