Unlock Position Sensor Signal Circuit [09/2015 - ]: Wiring Diagram

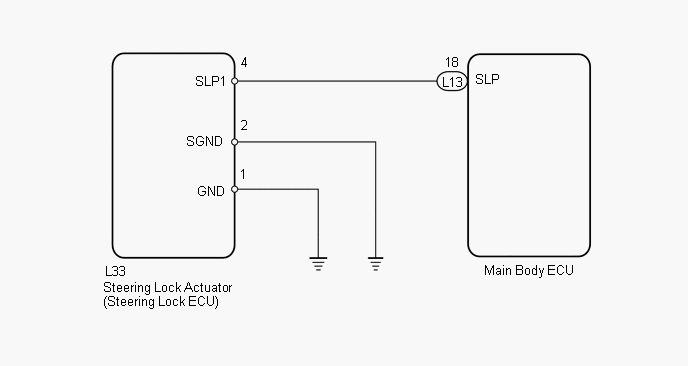

Fig 1: Unlock Position Sensor Signal Circuit Diagram
GTY685070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
