DTC B2782: Power Source Control ECU Malfunction [09/2015 - ]: Procedure

1. Check the DTCs (Refer to DTC CHECK / CLEAR [09/2015 - ] ).

   OK

   DTC B2782 is output, but DTC B2785 (LIN bus line malfunction) is not output.

Result:  NG

NG

GO TO DTC CHART (B2785)

(Refer to DTC B2785: Communication Malfunction between ECUs Connected by LIN [09/2015 - ] )

Result:  OK

OK

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Switch Condition	Specified Condition

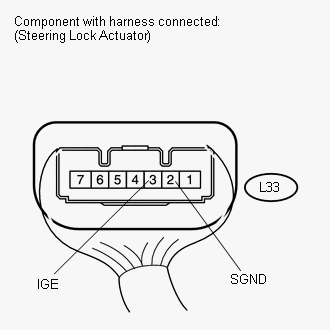

   L33-3 (IGE) - L33-2 (SGND)	Engine switch on (IG) (When steering lock motor is operating)	Below 1 V
   	Engine switch on (IG) (When steering lock motor is not operating)	11 to 14 V

   HINT:

   When the steering lock is activated and the engine switch is turned on (IG), the steering lock motor activates to release the steering lock. The motor operation occurs for 2 to 15 seconds.

Result:  OK

OK

REPLACE STEERING LOCK ACTUATOR

Result:  NG

NG

See step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L33 steering lock actuator connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition

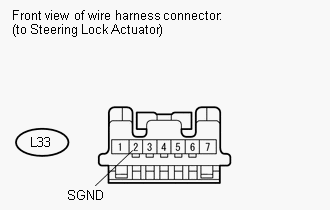

   L33-2 (SGND) - Body ground	Always	Below 1 Ω

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L13 main body ECU connector.
2. Disconnect the L33 steering lock actuator connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition

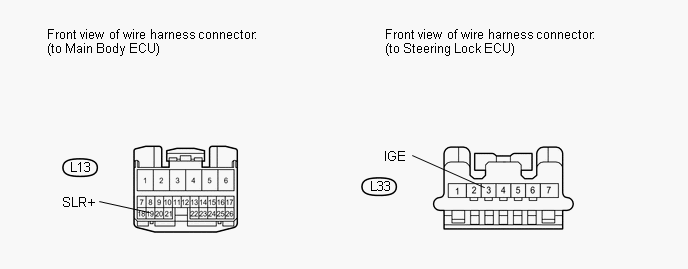

   L33-3 (IGE) - L13-19 (SLR+)	Always	Below 1 Ω
   L33-3 (IGE) or L13-19 (SLR+) - Body ground	Always	10 kΩ or higher

Result:  OK

OK

REPLACE MAIN BODY ECU

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
