DTC B2788: IG2 Signal Malfunction [09/2015 - ]: Procedure

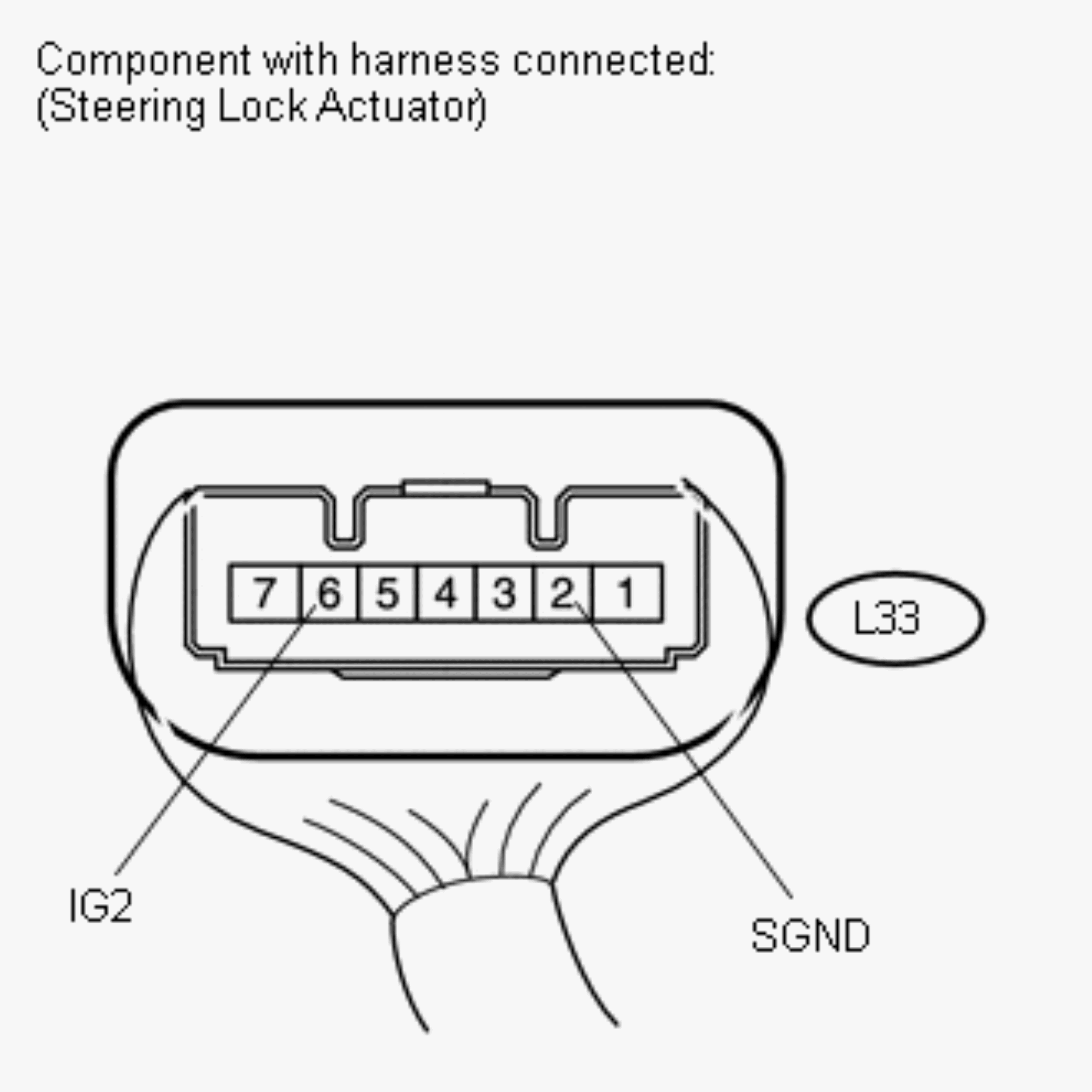

- CHECK STEERING LOCK ACTUATOR (IG2 VOLTAGE)
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition L33-6 (IG2) - L33-2 (SGND) Engine switch on (IG) 11 to 14 V L33-6 (IG2) - L33-2 (SGND) Engine switch off Below 1 V
Result: OK
OK
REPLACE STEERING LOCK ACTUATOR
Result: NG
NG
See step 2
- Measure the voltage according to the value(s) in the table below.
- INSPECT FUSE (ECU-IG, P IG2)
- Remove the ECU-IG fuse from the engine room No. 2 junction block.
- Remove the P IG2 fuse from the passenger side junction block.
- Measure the resistance of the fuses.
Standard resistance
Tester Connection Condition Specified Condition ECU-IG fuse Always Below 1 Ω P IG2 fuse Always Below 1 Ω
Result: NG
NG
REPLACE FUSE
Result: OK
OK
See step 3
- INSPECT IGNITION RELAY NO. 2 (IG2)
- Remove the ignition relay No. 2 from the engine room No. 2 junction block.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition 3 - 5 When battery voltage is not applied to terminals 1 and 2 10 kΩ or higher 3 - 5 When battery voltage is applied to terminals 1 and 2 Below 1 Ω
Result: NG
NG
REPLACE IG2 RELAY
Result: OK
OK
See step 4
- Remove the ignition relay No. 2 from the engine room No. 2 junction block.

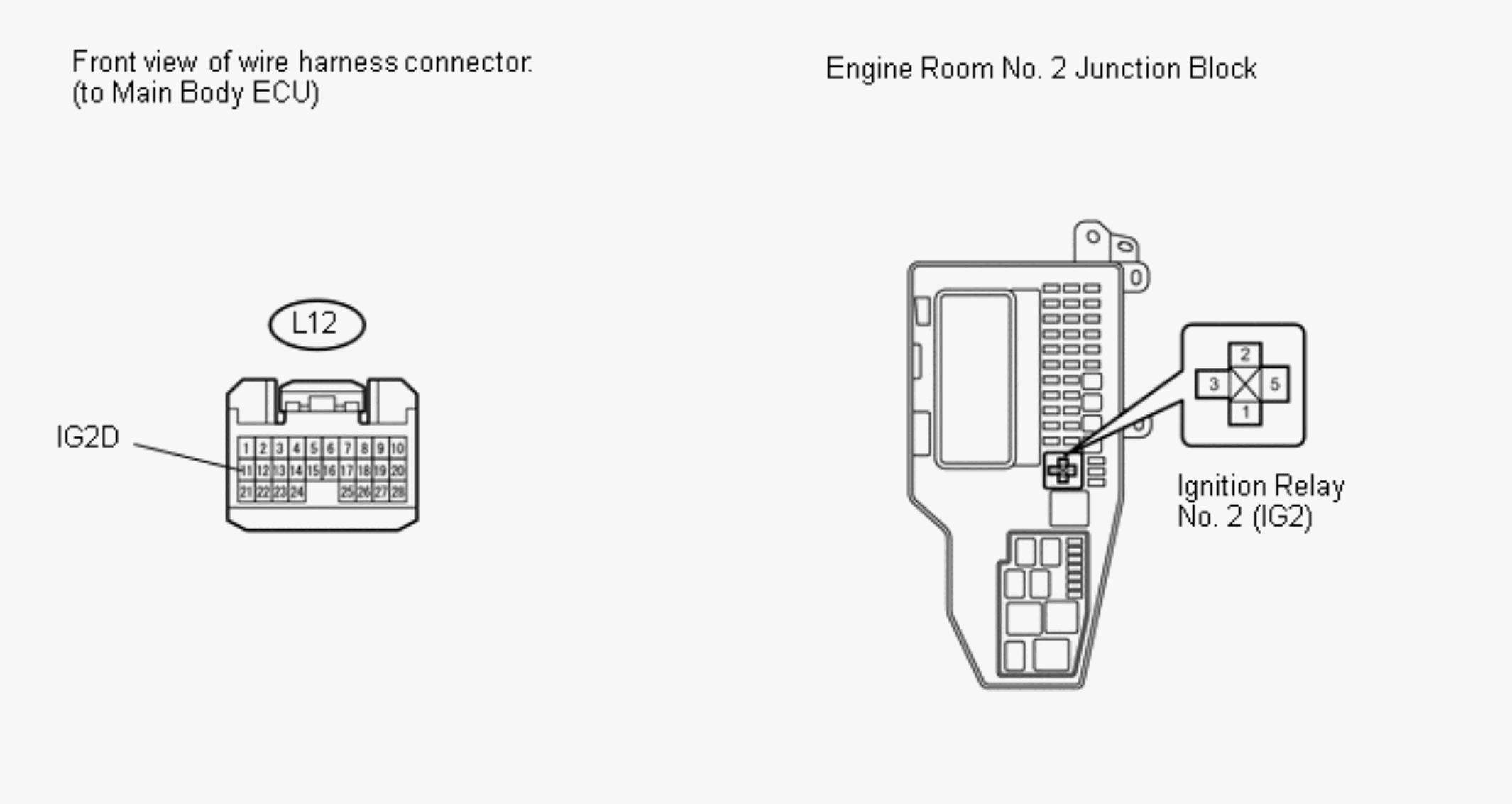

- CHECK HARNESS AND CONNECTOR (IG2 RELAY - MAIN BODY ECU AND BODY GROUND)
- Disconnect the L12 main body ECU connector.
- Remove the ignition relay No. 2 from the engine room No. 2 junction block.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Condition Specified Condition L12-11 (IG2D) - Relay block ignition relay No. 2 terminal 1 Always Below 1 Ω L12-11 (IG2D) - Body ground Always 10 kΩ or higher Relay block ignition relay No. 2 terminal 2 - Body ground Always Below 1 Ω
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
Result: OK
OK
See step 5

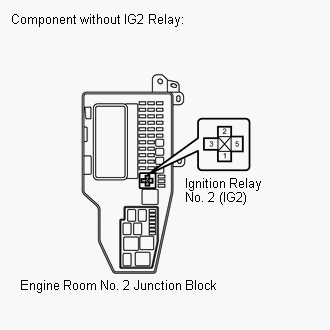

- CHECK MAIN BODY ECU (IG2D OPERATION)
- Connect the L12 main body ECU connector.
- Remove the ignition relay No. 2 from the engine room No. 2 junction block.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition Relay block ignition relay No. 2 terminal 1 - Body ground Engine switch on (IG) 11 to 14 V
Result: NG
NG
REPLACE MAIN BODY ECU
Result: OK
OK
See step 6

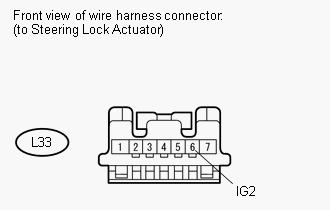

- CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BATTERY)
- Disconnect the L33 steering lock ECU connector.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
Tester Connection Switch Condition Specified Condition L33-6 (IG2) - Body ground Engine switch on (IG) 11 to 14 V
Result: OK
OK
REPLACE STEERING LOCK ACTUATOR
Result: NG
NG
REPAIR OR REPLACE HARNESS OR CONNECTOR
- Disconnect the L33 steering lock ECU connector.
