Installation [09/2015 - ]: Procedure

INSTALL OBJECT RECOGNITION CAMERA

NOTE:

Do not touch the camera lens when removing or installing the camera.
Do not use a camera which has been dropped or subjected to an impact.
If the camera is not installed securely, the system may not operate properly. Therefore, be sure to install the camera securely.
Push the bracket to attach the clip.
Allow the wire harness to hang down.
Do not press the sensor, as it may become deformed.

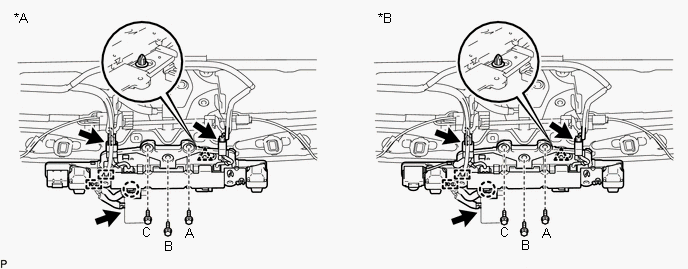

Temporarily install the object recognition camera with the clip.
Install the 3 bolts in alphabetical order.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
Attach the claw to connect the connector clamp.
Attach the 2 wire harness clamps.

Connect the 3 connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

w/o Night View System

w/ Night View System

INSTALL INNER REAR VIEW MIRROR ASSEMBLY
1. w/o Automatic High Beam System, Adaptive High Beam System:
  (Refer to PROCEDURE - Step 2 )
2. w/ Automatic High Beam System, Adaptive High Beam System:
  (Refer to PROCEDURE - Step 1 )
INSTALL RAIN SENSOR COVER
Refer to PROCEDURE - Step 3
INSTALL VISOR HOLDER
Refer to PROCEDURE - Step 10
INSTALL VISOR ASSEMBLY LH
Refer to PROCEDURE - Step 11
INSTALL VISOR ASSEMBLY RH
Refer to PROCEDURE - Step 12
INSTALL VISOR BRACKET COVER
Refer to PROCEDURE - Step 13
INSTALL MAP LIGHT ASSEMBLY
Refer to PROCEDURE - Step 20
ADJUST OBJECT RECOGNITION CAMERA
See step 1
ADJUST NIGHT VIEW CAMERA (w/ Night View System:)
(Refer to ADJUSTMENT [09/2015 - ] )
