VC Output Circuit [09/2015 - ]: Procedure

  1. CHECK MIL
    1. Check that Malfunction Indicator Lamp (MIL) lights up when turning the engine switch on (IG).

      OK

      MIL lights up.

    Result:  OK

    OK

    SYSTEM OK

    Result:  NG

    NG

    See step  2

  2. CHECK CONNECTION BETWEEN TECHSTREAM AND ECM
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and the Techstream on.
    3. Check the communication between the Techstream and ECM.

      Result

      Result Proceed to
      Communication is possible A
      Communication is not possible B

    Result:  A

    A

    GO TO MIL CIRCUIT

    (Refer to MIL Circuit [09/2015 - ] )

    Result:  B

    B

    See step  3

  3. CHECK MIL (THROTTLE BODY)
    1. Disconnect the throttle body connector.
    2. Turn the engine switch on (IG).
    3. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the throttle body connector.

      HINT:

      Perform "Inspection After Repair" after replacing the throttle body (Refer to INITIALIZATION [09/2015 - ] ).

    Result:  A

    A

    REPLACE THROTTLE BODY

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  4

  4. CHECK MIL (ACCELERATOR PEDAL POSITION SENSOR)
    1. Disconnect the accelerator pedal position sensor connector.
    2. Turn the engine switch on (IG).
    3. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the accelerator pedal position sensor connector.

    Result:  A

    A

    REPLACE ACCELERATOR PEDAL ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  5

  5. CHECK MIL (CANISTER PUMP MODULE)
    1. Disconnect the canister pump module connector.
    2. Turn the engine switch on (IG).
    3. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the canister pump module connector.

    Result:  A

    A

    REPLACE CANISTER ASSEMBLY

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  6

  6. CHECK MIL (CRANKSHAFT POSITION SENSOR)
    1. Disconnect the crankshaft position sensor.
    2. Turn the engine switch on (IG).
    3. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the crankshaft position sensor.

    Result:  A

    A

    REPLACE CRANKSHAFT POSITION SENSOR

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  7

  7. CHECK MIL (CAMSHAFT POSITION SENSOR)
    1. Disconnect the camshaft position sensor.
    2. Turn the engine switch on (IG).
    3. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the camshaft position sensor.

    Result:  A

    A

    REPLACE CAMSHAFT POSITION SENSOR

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  8

  8. CHECK MIL (VVT SENSOR FOR INTAKE SIDE BANK 1)
    1. Remove the air cleaner assembly LH (Refer to PROCEDURE - Step 24 ).
    2. Disconnect the VVT sensor for intake side bank 1 connector.
    3. Turn the engine switch on (IG).
    4. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    5. Reconnect the VVT sensor for intake side bank 1 connector.

    Result:  A

    A

    REPLACE VVT SENSOR FOR INTAKE SIDE BANK 1

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  9

  9. CHECK MIL (VVT SENSOR FOR EXHAUST SIDE BANK 1)
    1. Disconnect the VVT sensor for exhaust side bank 1 connector.
    2. Turn the engine switch on (IG).
    3. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the VVT sensor for exhaust side bank 1 connector.

    Result:  A

    A

    REPLACE VVT SENSOR FOR EXHAUST SIDE BANK 1

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  10

  10. CHECK MIL (VVT SENSOR FOR INTAKE SIDE BANK 2)
    1. Remove the air cleaner assembly RH (Refer to PROCEDURE - Step 25 ).
    2. Disconnect the VVT sensor for intake side bank 2 connector.
    3. Turn the engine switch on (IG).
    4. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    5. Reconnect the VVT sensor for intake side bank 2 connector.

    Result:  A

    A

    REPLACE VVT SENSOR FOR INTAKE SIDE BANK 2

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  11

  11. CHECK MIL (VVT SENSOR FOR EXHAUST SIDE BANK 2)
    1. Disconnect the VVT sensor for exhaust side bank 2 connector.
    2. Turn the engine switch on (IG).
    3. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    4. Reconnect the VVT sensor for exhaust side bank 2 connector.

    Result:  A

    A

    REPLACE VVT SENSOR FOR EXHAUST SIDE BANK 2

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  12

  12. CHECK MIL (FUEL PRESSURE SENSOR)
    1. Remove the intake manifold (Refer to REMOVAL [09/2015 - ] ).
    2. Disconnect the fuel pressure sensor connector.
    3. Turn the engine switch on (IG).
    4. Check the MIL.

      Result

      Result Proceed to
      MIL illuminates A
      MIL does not illuminate B
    5. Reconnect the fuel pressure sensor connector.

    Result:  A

    A

    REPLACE FUEL DELIVERY PIPE SUB-ASSEMBLY LH (FUEL PRESSURE SENSOR)

    (Refer to REMOVAL [09/2015 - ] )

    Result:  B

    B

    See step  13

  13. CHECK HARNESS AND CONNECTOR
    1. Disconnect the throttle body connector.

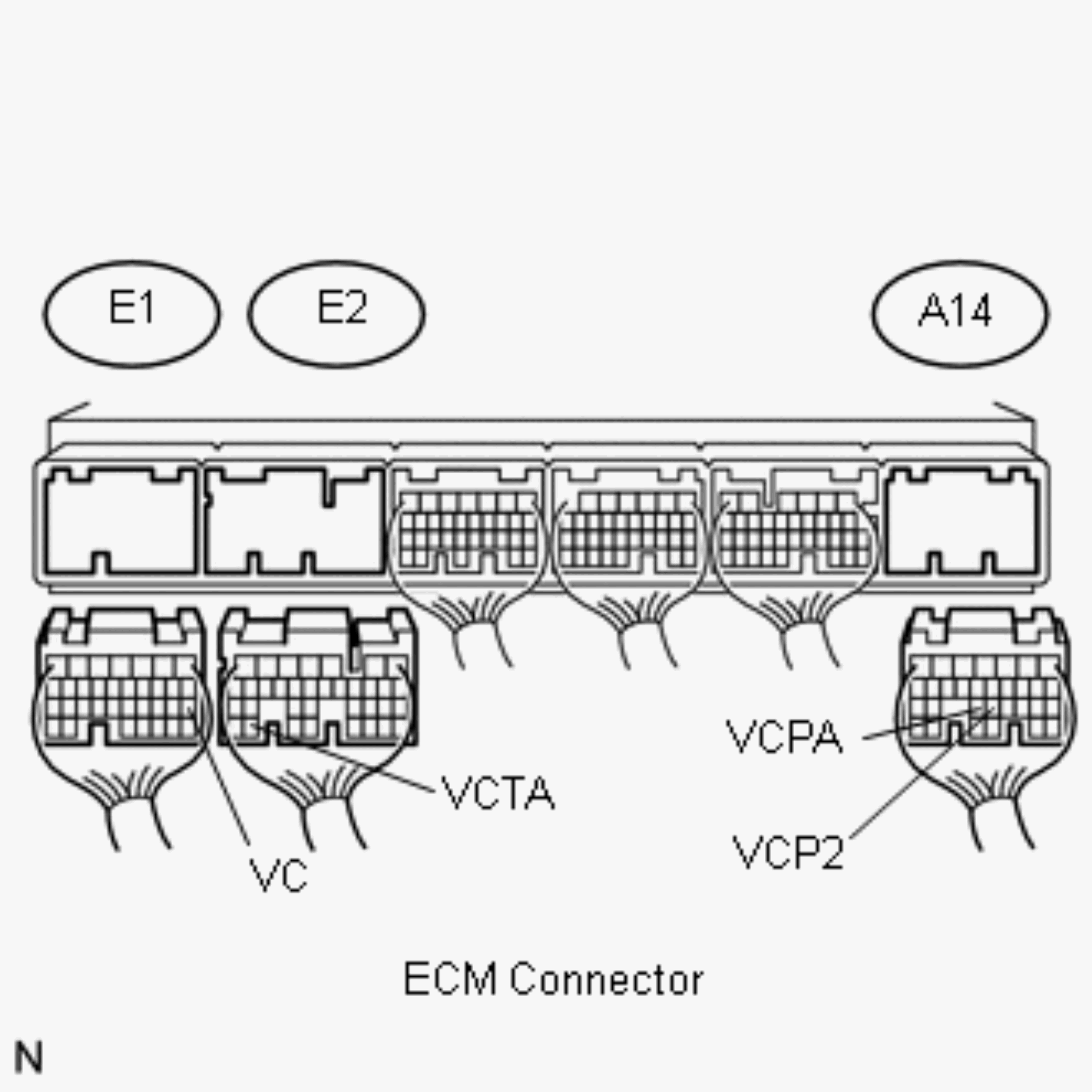

      GTY613306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the accelerator pedal position sensor connector.
    3. Disconnect the canister pump module connector.
    4. Disconnect the VVT sensor for intake side (bank 1).
    5. Disconnect the VVT sensor for exhaust side (bank 1).
    6. Disconnect the VVT sensor for intake side (bank 2).
    7. Disconnect the VVT sensor for exhaust side (bank 2).
    8. Disconnect the crankshaft position sensor.
    9. Disconnect the camshaft position sensor.
    10. Disconnect the fuel pressure sensor.
    11. Disconnect the E1, E2 and A14 ECM connectors.
    12. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for short)

      Tester Connection Condition Specified Condition
      E2-34 (VCTA) - Body ground Always 10 kΩ or higher
      A14-23 (VCPA) - Body ground Always 10 kΩ or higher
      A14-22 (VCP2) - Body ground Always 10 kΩ or higher
      E1-18 (VC) - Body ground Always 10 kΩ or higher
    13. Reconnect the ECM connectors.
    14. Reconnect the canister pump module connector.
    15. Reconnect the accelerator pedal position sensor connector.
    16. Reconnect the throttle body connector.
    17. Reconnect the VVT sensor for intake side (bank 1).
    18. Reconnect the VVT sensor for exhaust side (bank 1).
    19. Reconnect the VVT sensor for intake side (bank 2).
    20. Reconnect the VVT sensor for exhaust side (bank 2).
    21. Reconnect the crankshaft position sensor.
    22. Reconnect the camshaft position sensor.
    23. Reconnect the fuel pressure sensor.

    Result:  OK

    OK

    REPLACE ECM

    (Refer to REMOVAL [09/2015 - ] )

    Result:  NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
