Rear Power Window RH Auto Up / Down Function does not Operate with Rear Power Window Switch RH [09/2015 - ]: Procedure

1. Check for DTCs.
   RESULT:



   Result	Proceed to
   DTC is not output	A
   B2311 is output	B
   B2312 is output	C
   B2313 is output	D
   LIN communication system DTC output reoccur	E

Result:  B

B

GO TO DTC B2311

(Refer to DTC B2311: Power Window Motor Malfunction [09/2015 - ] )

Result:  C

C

GO TO DTC B2312

(Refer to DTC B2312: Power Window Switch Malfunction [09/2015 - ] )

Result:  D

D

GO TO DTC B2313

(Refer to DTC B2313: Glass Position Initialization Incomplete [09/2015 - ] )

Result:  E

E

GO TO LIN COMMUNICATION SYSTEM

(Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2015 - ] )

Result:  A

A

See step  2

1. Check that the manual UP/DOWN function using the rear power window regulator switch RH can operate the driver door power window.

   OK

   Manual UP/DOWN function operates normally.

Result:  NG

NG

OTHER PROBLEM

(Refer to Rear Power Window RH does not Operate with Rear Power Window Switch RH [09/2015 - ] )

Result:  OK

OK

See step  3

1. Use the Data List to check if the power window regulator motor is functioning properly.
   RR-DOOR MOTOR:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Auto SW	Rear power window RH auto UP/DOWN switch signal / ON or OFF	ON: Rear power window RH auto UP/DOWN switch operated OFF: Rear power window switch RH not operated	-

   OK

   Techstream display changes normally when rear power window switch RH is operated.

Result:  OK

OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [09/2015 - ] )

Result:  NG

NG

See step  4

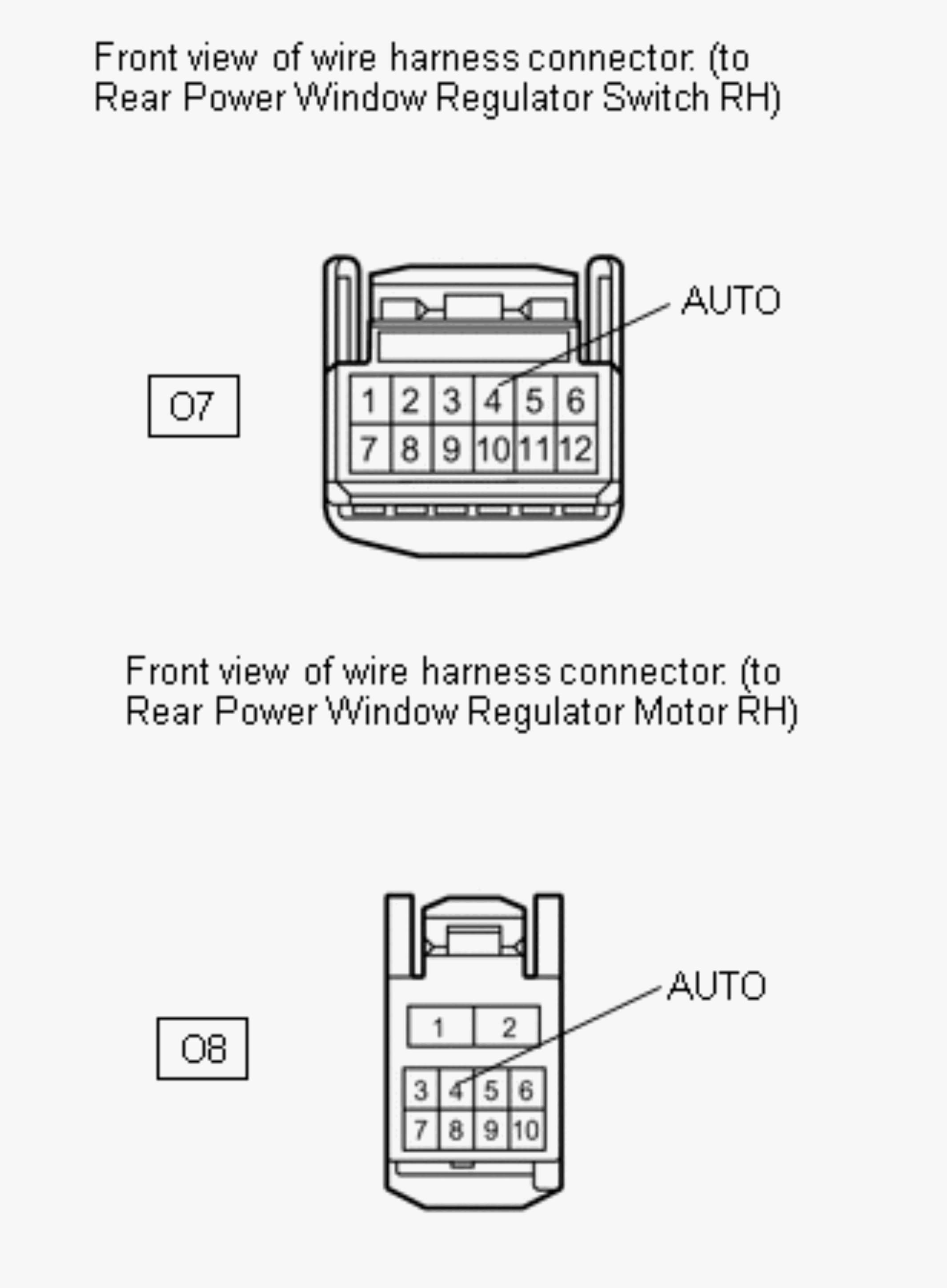

1. Disconnect the O7 switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the O8 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O7-4 (AUTO) - O8-4 (AUTO)	Always	Below 1 Ω
   O7-4 (AUTO) or O8-4 (AUTO) - Body ground	Always	10 kΩ or higher

Result:  NG

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:  OK

OK

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

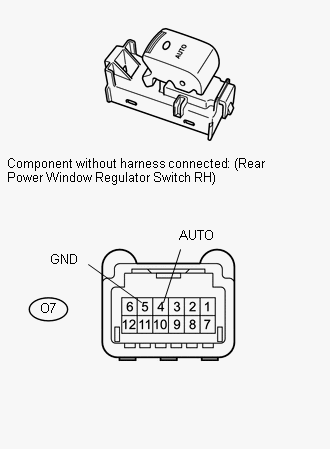

1. Remove the switch.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   O7-4 (AUTO) - O7-5 (GND)	AUTO UP/DOWN operation	Below 1 Ω

Result:  OK

OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

(Refer to REMOVAL [09/2015 - ] )

Result:  NG

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH

(Refer to REMOVAL [09/2015 - ] )
