Components [10/2014 - 09/2017]

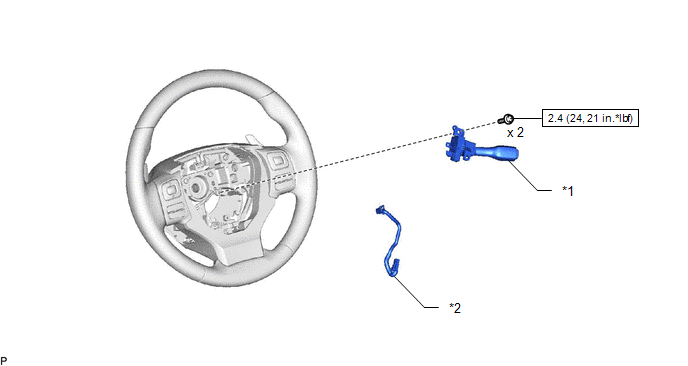

Fig 1: Cruise Control Main Switch Replacement Components With Torque Specifications
GTY505742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 CRUISE CONTROL MAIN SWITCH *2 CRUISE CONTROL SWITCH WIRE
N*m (kgf*cm, ft.*lbf): Specified torque - -
