Installation [10/2014 - 09/2017]: Procedure

1. Connect the connector and install the cruise control switch wire to the cruise control main switch.

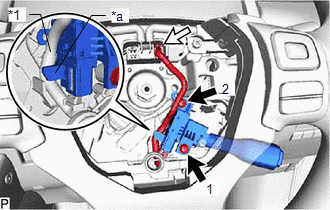

2. Pass the cruise control switch wire under the rib as shown in the illustration, and temporarily install the cruise control main switch with the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Cruise Control Switch Wire
   *a	Rib

3. Tighten the 2 screws in the order as shown in the illustration to install the cruise control main switch.

   Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

4. Connect the connector.

Refer to INSTALLATION [10/2014 - 05/2019]
